geometry problems from Purple Comet Math Meet (Middle School - High School)
with aops links in the names
2003 Purple Comet MS HS p2
The lengths of the diagonals of a rhombus are, in inches, two consecutive integers. The area of the rhombus is $210$ sq. in. Find its perimeter, in inches.
2003 Purple Comet MS HS p8
Let $ABCDEFGHIJKL$ be a regular dodecagon. Find $\frac{AB}{AF} + \frac{AF}{AB}$.
2003 Purple Comet MS HS p18
A circle radius $320$ is tangent to the inside of a circle radius $1000$. The smaller circle is tangent to a diameter of the larger circle at a point $P$. How far is the point $P$ from the outside of the larger circle?
2003 Purple Comet MS HS p22
In $\triangle ABC$, max $\{\angle A, \angle B \} = \angle C + 30^{\circ}$ and $\frac{R}{r} = \sqrt{3} + 1$, where $R$ is the radius of the circumcircle and $r$ is the radius of the incircle. Find $\angle C$ in degrees.
2003 Purple Comet MS HS p24
In $\triangle ABC$, $\angle A = 30^{\circ}$ and $AB = AC = 16$ in. Let $D$ lie on segment $BC$ such that $\frac{DB}{DC} = \frac23$ . Let $E$ and $F$ be the orthogonal projections of $D$ onto $AB$ and $AC$, respectively. Find $DE + DF$ in inches.
2004 Purple Comet MS p7
A rectangle has area $1100$. If the length is increased by ten percent and the width is decreased by ten percent, what is the area of the new rectangle?
2004 Purple Comet MS p14
A polygon has five times as many diagonals as it has sides. How many vertices does the polygon have?
2004 Purple Comet MS p20
A circle with area $40$ is tangent to a circle with area $10$. Let R be the smallest rectangle containing both circles. The area of $R$ is $\frac{n}{\pi}$. Find $n$.
2004 Purple Comet MS p22
Two circles have radii $15$ and $95$. If the two external tangents to the circles intersect at $60$ degrees, how far apart are the centers of the circles?
2005 Purple Comet MS p3

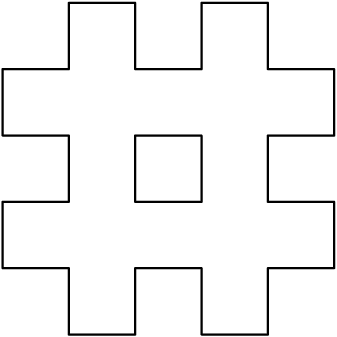

Four rectangular strips each measuring $4$ by $16$ inches are laid out with two vertical strips crossing two horizontal strips forming a single polygon which looks like a tic-tack-toe pattern. What is the perimeter of this polygon?
2005 Purple Comet MS p6
We glue together $990$ one inch cubes into a $9$ by $10$ by $11$ inch rectangular solid. Then we paint the outside of the solid. How many of the original $990$ cubes have just one of their sides painted?
2006 Purple Comet MS p13
An equilateral triangle with side length $6$ has a square of side length $6$ attached to each of its edges as shown. The distance between the two farthest vertices of this figure (marked $A$ and $B$ in the figure) can be written as $m + \sqrt{n}$ where $m$ and $n$ are positive integers. Find $m + n$.
2006 Purple Comet MS p15
A concrete sewer pipe fitting is shaped like a cylinder with diameter $48$ with a cone on top. A cylindrical hole of diameter $30$ is bored all the way through the center of the fitting as shown. The cylindrical portion has height $60$ while the conical top portion has height $20$. Find $N$ such that the volume of the concrete is $N \pi$.
2007 Purple Comet MS p3
Square $ABCD$ has side length $36$. Point $E$ is on side $AB$ a distance $12$ from $B$, point $F$ is the midpoint of side $BC$, and point $G$ is on side $CD$ a distance $12$ from $C$. Find the area of the region that lies inside triangle $EFG$ and outside triangle $AFD$.
2008 Purple Comet MS p7
The diagram below shows an isosceles triangle with base $21$ and height $28$. Inscribed in the triangle is a square. Find the area of the shaded region inside the triangle and outside of the square.
2008 Purple Comet MS p9
One container of paint is exactly enough to cover the inside of an old rectangle which is three times as long as it is wide. If we make a new rectangle by shortening the old rectangle by $18$ feet and widening it by $8$ feet as shown below, one container of paint is also exactly enough to cover the inside of the new rectangle. Find the length in feet of the perimeter of the new rectangle.
2008 Purple Comet MS p13
Let $A_1A_2A_3...A_{12}$ be a regular dodecagon. Find the number of right triangles whose vertices are in the set ${A_1A_2A_3...A_{12}}$
2012 Purple Comet MS p17
The diagram below shows nine points on a circle where $AB=BC=CD=DE=EF=FG=GH$. Given that $\angle GHJ=117^\circ$ and $\overline{BH}$ is perpendicular to $\overline{EJ}$, there are relatively prime positive integers $m$ and $n$ so that the degree measure of $\angle AJB$ is $\textstyle\frac mn$. Find $m+n$.
2015 Purple Comet MS p12
Right triangle ABC with a right angle at A has AB = 20 and AC = 15. Point D is on AB with BD = 2. Points E and F are placed on ray CA and ray CB, respectively, such that CD is a median of $\triangle$ CEF. Find the area of $\triangle$ CEF.
2015 Purple Comet MS p17
A courtyard has the shape of a parallelogram ABCD. At the corners of the courtyard there stand poles AA', BB', CC', and DD', each of which is perpendicular to the ground. The heights of these poles are AA' = 68 centimeters, BB' = 75 centimeters, CC' = 112 centimeters, and DD' = 133 centimeters. Find the distance in centimeters between the midpoints of A'C' and B'D'.
2005 Purple Comet HS p2
We glue together $990$ one inch cubes into a $9$ by $10$ by $11$ inch rectangular solid. Then we paint the outside of the solid. How many of the original $990$ cubes have just one of their sides painted?
2005 Purple Comet HS p6
$ABCDE$ is a regular pentagon. What is the degree measure of the acute angle at the intersection of line segments $AC$ and $BD$?
2019 Purple Comet HS p20
An ant starts at vertex $A$ in equilateral triangle $\vartriangle ABC$ and walks around the perimeter of the triangle from $A$ to $B$ to $C$ and back to $A$. When the ant is $42$ percent of its way around the triangle, it stops for a rest. Find the percent of the way from $B$ to $C$ the ant is at that point
The diagram below shows square $ABCD$ which has side length $12$ and has the same center as square $EFGH$ which has side length $6$. Find the area of quadrilateral $ABFE$.
The diagram below shows $\vartriangle ABC$ with area $64$, where $D, E$, and $F$ are the midpoints of $BC, CA$, and $AB$, respectively. Point $G$ is the intersection of $DF$ and $BE$. Find the area of quadrilateral $AFGE$.
Two circles have radius $9$, and one circle has radius $7$. Each circle is externally tangent to the other two circles, and each circle is internally tangent to two sides of an isosceles triangle, as shown. The sine of the base angle of the triangle is $\frac{m}{n}$ , where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
In isosceles $\vartriangle ABC, AB = AC, \angle BAC$ is obtuse, and points $E$ and $F$ lie on sides $AB$ and $AC$, respectively, so that $AE = 10, AF = 15$. The area of $\vartriangle AEF$ is $60$, and the area of quadrilateral $BEFC$ is $102$. Find $BC$.
Points $E$ and $F$ lie on diagonal $\overline{AC}$ of square $ABCD$ with side length $24$, such that $AE = CF = 3\sqrt2$. An ellipse with foci at $E$ and $F$ is tangent to the sides of the square. Find the sum of the distances from any point on the ellipse to the two foci.
In $\vartriangle ABC, \angle A = 52^o$ and $\angle B = 57^o$. One circle passes through the points $B, C$, and the incenter of $\vartriangle ABC$, and a second circle passes through the points $A, C$, and the circumcenter of $\vartriangle ABC$. Find the degree measure of the acute angle at which the two circles intersect.
Four small spheres each with radius $6$ are each internally tangent to a large sphere with radius $17$. The four small spheres form a ring with each of the four spheres externally tangent to its two neighboring small spheres. A sixth intermediately sized sphere is internally tangent to the large sphere and externally tangent to each of the four small spheres. Its radius is $\frac{m}{n}$ , where m and n are relatively prime positive integers. Find $m + n$.
with aops links in the names
for Middle and High Schools [solutions online]
the first years it was named as UW-Whitewater / UT-Dallas Mathematics Meet
[these problems due to the time limit and varying difficulty are not added
to the site's olympiad geometry problem sum]
[these problems due to the time limit and varying difficulty are not added
to the site's olympiad geometry problem sum]
Middle School MS
The lengths of the diagonals of a rhombus are, in inches, two consecutive integers. The area of the rhombus is $210$ sq. in. Find its perimeter, in inches.
2003 Purple Comet MS HS p8
Let $ABCDEFGHIJKL$ be a regular dodecagon. Find $\frac{AB}{AF} + \frac{AF}{AB}$.
2003 Purple Comet MS HS p18
A circle radius $320$ is tangent to the inside of a circle radius $1000$. The smaller circle is tangent to a diameter of the larger circle at a point $P$. How far is the point $P$ from the outside of the larger circle?
2003 Purple Comet MS HS p22
In $\triangle ABC$, max $\{\angle A, \angle B \} = \angle C + 30^{\circ}$ and $\frac{R}{r} = \sqrt{3} + 1$, where $R$ is the radius of the circumcircle and $r$ is the radius of the incircle. Find $\angle C$ in degrees.
2003 Purple Comet MS HS p24
In $\triangle ABC$, $\angle A = 30^{\circ}$ and $AB = AC = 16$ in. Let $D$ lie on segment $BC$ such that $\frac{DB}{DC} = \frac23$ . Let $E$ and $F$ be the orthogonal projections of $D$ onto $AB$ and $AC$, respectively. Find $DE + DF$ in inches.
2004 Purple Comet MS p7
A rectangle has area $1100$. If the length is increased by ten percent and the width is decreased by ten percent, what is the area of the new rectangle?
2004 Purple Comet MS p14
A polygon has five times as many diagonals as it has sides. How many vertices does the polygon have?
2004 Purple Comet MS p20
A circle with area $40$ is tangent to a circle with area $10$. Let R be the smallest rectangle containing both circles. The area of $R$ is $\frac{n}{\pi}$. Find $n$.
Two circles have radii $15$ and $95$. If the two external tangents to the circles intersect at $60$ degrees, how far apart are the centers of the circles?
2005 Purple Comet MS p3
Four rectangular strips each measuring $4$ by $16$ inches are laid out with two vertical strips crossing two horizontal strips forming a single polygon which looks like a tic-tack-toe pattern. What is the perimeter of this polygon?
We glue together $990$ one inch cubes into a $9$ by $10$ by $11$ inch rectangular solid. Then we paint the outside of the solid. How many of the original $990$ cubes have just one of their sides painted?
2006 Purple Comet MS p13
An equilateral triangle with side length $6$ has a square of side length $6$ attached to each of its edges as shown. The distance between the two farthest vertices of this figure (marked $A$ and $B$ in the figure) can be written as $m + \sqrt{n}$ where $m$ and $n$ are positive integers. Find $m + n$.
A concrete sewer pipe fitting is shaped like a cylinder with diameter $48$ with a cone on top. A cylindrical hole of diameter $30$ is bored all the way through the center of the fitting as shown. The cylindrical portion has height $60$ while the conical top portion has height $20$. Find $N$ such that the volume of the concrete is $N \pi$.
Square $ABCD$ has side length $36$. Point $E$ is on side $AB$ a distance $12$ from $B$, point $F$ is the midpoint of side $BC$, and point $G$ is on side $CD$ a distance $12$ from $C$. Find the area of the region that lies inside triangle $EFG$ and outside triangle $AFD$.
The diagram below shows an isosceles triangle with base $21$ and height $28$. Inscribed in the triangle is a square. Find the area of the shaded region inside the triangle and outside of the square.
One container of paint is exactly enough to cover the inside of an old rectangle which is three times as long as it is wide. If we make a new rectangle by shortening the old rectangle by $18$ feet and widening it by $8$ feet as shown below, one container of paint is also exactly enough to cover the inside of the new rectangle. Find the length in feet of the perimeter of the new rectangle.
Let $A_1A_2A_3...A_{12}$ be a regular dodecagon. Find the number of right triangles whose vertices are in the set ${A_1A_2A_3...A_{12}}$
2009 Purple Comet MS p1
The pentagon below has three right angles. Find its area.
The pentagon below has three right angles. Find its area.
2009 Purple Comet MS p8
Find the number of non-congruent scalene triangles whose sides all have integral length, and the longest side has length $11$.
Find the number of non-congruent scalene triangles whose sides all have integral length, and the longest side has length $11$.
2009 Purple Comet MS p10
The diagram shows a $20$ by $20$ square $ABCD$. The points $E$, $F$, and $G$ are equally spaced on side $BC$. The points $H$, $I$, $J$, and $K$ on side $DA$ are placed so that the triangles $BKE$, $EJF$, $FIG$, and $GHC$ are isosceles. Points $L$ and $M$ are midpoints of the sides $AB$ and $CD$, respectively. Find the total area of the shaded regions.
The diagram shows a $20$ by $20$ square $ABCD$. The points $E$, $F$, and $G$ are equally spaced on side $BC$. The points $H$, $I$, $J$, and $K$ on side $DA$ are placed so that the triangles $BKE$, $EJF$, $FIG$, and $GHC$ are isosceles. Points $L$ and $M$ are midpoints of the sides $AB$ and $CD$, respectively. Find the total area of the shaded regions.
2009 Purple Comet MS p12
In isosceles triangle $ABC$ sides $AB$ and $BC$ have length $125$ while side $AC$ has length $150$. Point $D$ is the midpoint of side $AC$. $E$ is on side $BC$ so that $BC$ and $DE$ are perpendicular. Similarly, $F$ is on side $AB$ so that $AB$ and $DF$ are perpendicular. Find the area of triangle $DEF$.
2009 Purple Comet MS p14
Rectangle $ABCD$ measures $70$ by $40$. Eighteen points (including $A$ and $C$) are marked on the diagonal $AC$ dividing the diagonal into $17$ congruent pieces. Twenty-two points (including A and B) are marked on the side $AB$ dividing the side into $21$ congruent pieces. Seventeen non-overlapping triangles are constructed as shown. Each triangle has two vertices that are two of these adjacent marked points on the side of the rectangle, and one vertex that is one of the marked points along the diagonal of the rectangle. Only the left $17$ of the $21$ congruent pieces along the side of the rectangle are used as bases of these triangles. Find the sum of the areas of these $17$ triangles.
In isosceles triangle $ABC$ sides $AB$ and $BC$ have length $125$ while side $AC$ has length $150$. Point $D$ is the midpoint of side $AC$. $E$ is on side $BC$ so that $BC$ and $DE$ are perpendicular. Similarly, $F$ is on side $AB$ so that $AB$ and $DF$ are perpendicular. Find the area of triangle $DEF$.
2009 Purple Comet MS p14
Rectangle $ABCD$ measures $70$ by $40$. Eighteen points (including $A$ and $C$) are marked on the diagonal $AC$ dividing the diagonal into $17$ congruent pieces. Twenty-two points (including A and B) are marked on the side $AB$ dividing the side into $21$ congruent pieces. Seventeen non-overlapping triangles are constructed as shown. Each triangle has two vertices that are two of these adjacent marked points on the side of the rectangle, and one vertex that is one of the marked points along the diagonal of the rectangle. Only the left $17$ of the $21$ congruent pieces along the side of the rectangle are used as bases of these triangles. Find the sum of the areas of these $17$ triangles.
2010 Purple Comet MS p3
The grid below contains five rows with six points in each row. Points that are adjacent either horizontally or vertically are a distance one apart. Find the area of the pentagon shown.
The grid below contains five rows with six points in each row. Points that are adjacent either horizontally or vertically are a distance one apart. Find the area of the pentagon shown.
2010 Purple Comet MS p12
The diagram below shows twelve $30-60-90$ triangles placed in a circle so that the hypotenuse of each triangle coincides with the longer leg of the next triangle. The fourth and last triangle in this diagram are shaded. The ratio of the perimeters of these two triangles can be written as $\tfrac{m}{n}$ where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
The diagram below shows twelve $30-60-90$ triangles placed in a circle so that the hypotenuse of each triangle coincides with the longer leg of the next triangle. The fourth and last triangle in this diagram are shaded. The ratio of the perimeters of these two triangles can be written as $\tfrac{m}{n}$ where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
2010 Purple Comet MS p14
Let $ABCD$ be a trapezoid where $AB$ is parallel to $CD.$ Let $P$ be the intersection of diagonal $AC$ and diagonal $BD.$ If the area of triangle $PAB$ is $16,$ and the area of triangle $PCD$ is $25,$ find the area of the trapezoid.
Let $ABCD$ be a trapezoid where $AB$ is parallel to $CD.$ Let $P$ be the intersection of diagonal $AC$ and diagonal $BD.$ If the area of triangle $PAB$ is $16,$ and the area of triangle $PCD$ is $25,$ find the area of the trapezoid.
2010 Purple Comet MS p17
The diagram below shows a triangle divided into sections by three horizontal lines which divide the altitude of the triangle into four equal parts, and three lines connecting the top vertex with points that divide the opposite side into four equal parts. If the shaded region has area $100$, find the area of the entire triangle.
The diagram below shows a triangle divided into sections by three horizontal lines which divide the altitude of the triangle into four equal parts, and three lines connecting the top vertex with points that divide the opposite side into four equal parts. If the shaded region has area $100$, find the area of the entire triangle.
2010 Purple Comet MS p19
Square $A$ is adjacent to square $B$ which is adjacent to square $C$. The three squares all have their bottom sides along a common horizontal line. The upper left vertices of the three squares are collinear. If square $A$ has area $24$, and square $B$ has area $36$, find the area of square $C$.
Square $A$ is adjacent to square $B$ which is adjacent to square $C$. The three squares all have their bottom sides along a common horizontal line. The upper left vertices of the three squares are collinear. If square $A$ has area $24$, and square $B$ has area $36$, find the area of square $C$.
2011 Purple Comet MS p2
The diagram below shows a $12$-sided figure made up of three congruent squares. The figure has total perimeter $60$. Find its area.
2011 Purple Comet MS p8
The diagram below shows a $12$-sided figure made up of three congruent squares. The figure has total perimeter $60$. Find its area.
A square measuring $15$ by $15$ is partitioned into five rows of five congruent squares as shown below. The small squares are alternately colored black and white as shown. Find the total area of the part colored black.
2011 Purple Comet MS p10
Five rays $\overrightarrow{OA}$,$\overrightarrow{OB}$, $\overrightarrow{OC}$, $\overrightarrow{OD}$, and $\overrightarrow{OE}$ radiate in a clockwise order from $O$ forming four non-overlapping angles such that $\angle EOD = 2\angle COB$, $\angle COB = 2\angle BOA$, while $\angle DOC = 3\angle BOA$. If $E$, $O$, $A$ are collinear with $O$ between $A$ and $E$, what is the degree measure of $\angle DOB?$
Five rays $\overrightarrow{OA}$,$\overrightarrow{OB}$, $\overrightarrow{OC}$, $\overrightarrow{OD}$, and $\overrightarrow{OE}$ radiate in a clockwise order from $O$ forming four non-overlapping angles such that $\angle EOD = 2\angle COB$, $\angle COB = 2\angle BOA$, while $\angle DOC = 3\angle BOA$. If $E$, $O$, $A$ are collinear with $O$ between $A$ and $E$, what is the degree measure of $\angle DOB?$
2011 Purple Comet MS p13
The diagram shows two equilateral triangles with side length $4$ mounted on two adjacent sides of a square also with side length $4$. The distance between the two vertices marked $A$ and $B$ can be written as $\sqrt{m}+\sqrt{n}$ for two positive integers $m$ and $n$. Find $m + n$.
The diagram shows two equilateral triangles with side length $4$ mounted on two adjacent sides of a square also with side length $4$. The distance between the two vertices marked $A$ and $B$ can be written as $\sqrt{m}+\sqrt{n}$ for two positive integers $m$ and $n$. Find $m + n$.
2011 Purple Comet MS p15
In the diagram below, $\overline{AB}$ and $\overline{CD}$ are parallel, $\angle BXY = 45^\circ$, $\angle DZY = 25^\circ$, and $XY = YZ$. What is the degree measure of $\angle YXZ$?
In the diagram below, $\overline{AB}$ and $\overline{CD}$ are parallel, $\angle BXY = 45^\circ$, $\angle DZY = 25^\circ$, and $XY = YZ$. What is the degree measure of $\angle YXZ$?
2012 Purple Comet MS p2
The diagram below shows rectangle $ABDE$ where $C$ is the midpoint of side $\overline{BD}$, and $F$ is the midpoint of side $\overline{AE}$. If $AB=10$ and $BD=24$, find the area of the shaded region.
The diagram below shows rectangle $ABDE$ where $C$ is the midpoint of side $\overline{BD}$, and $F$ is the midpoint of side $\overline{AE}$. If $AB=10$ and $BD=24$, find the area of the shaded region.
2012 Purple Comet MS p9
Points $E$ and $F$ lie inside rectangle $ABCD$ with $AE=DE=BF=CF=EF$. If $AB=11$ and $BC=8$, find the area of the quadrilateral $AEFB$.
Points $E$ and $F$ lie inside rectangle $ABCD$ with $AE=DE=BF=CF=EF$. If $AB=11$ and $BC=8$, find the area of the quadrilateral $AEFB$.
2012 Purple Comet MS p12
Pentagon $ABCDE$ consists of a square $ACDE$ and an equilateral triangle $ABC$ that share the side $\overline{AC}$. A circle centered at $C$ has area 24. The intersection of the circle and the pentagon has half the area of the pentagon. Find the area of the pentagon.
Pentagon $ABCDE$ consists of a square $ACDE$ and an equilateral triangle $ABC$ that share the side $\overline{AC}$. A circle centered at $C$ has area 24. The intersection of the circle and the pentagon has half the area of the pentagon. Find the area of the pentagon.
The diagram below shows nine points on a circle where $AB=BC=CD=DE=EF=FG=GH$. Given that $\angle GHJ=117^\circ$ and $\overline{BH}$ is perpendicular to $\overline{EJ}$, there are relatively prime positive integers $m$ and $n$ so that the degree measure of $\angle AJB$ is $\textstyle\frac mn$. Find $m+n$.
2013 Purple Comet MS p1
The diagram shows two congruent isosceles triangles in a $20\times20$ square which has been partitioned into four $10\times10$ squares. Find the area of the shaded region.
The diagram shows two congruent isosceles triangles in a $20\times20$ square which has been partitioned into four $10\times10$ squares. Find the area of the shaded region.
2013 Purple Comet MS p5
A picture with an area of $160$ square inches is surrounded by a $2$ inch border. The picture with its border is a rectangle twice as long as it is wide. How many inches long is that rectangle?
A picture with an area of $160$ square inches is surrounded by a $2$ inch border. The picture with its border is a rectangle twice as long as it is wide. How many inches long is that rectangle?
2013 Purple Comet MS p11
In the following diagram two sides of a square are tangent to a circle with diameter $8$. One corner of the square lies on the circle. There are positive integers $m$ and $n$ so that the area of the square is $m +\sqrt{n}$. Find $m + n$.
In the following diagram two sides of a square are tangent to a circle with diameter $8$. One corner of the square lies on the circle. There are positive integers $m$ and $n$ so that the area of the square is $m +\sqrt{n}$. Find $m + n$.
2013 Purple Comet MS p17
A rectangle has side lengths $6$ and $8$. There are relatively prime positive integers $m$ and $n$ so that $\tfrac{m}{n}$ is the probability that a point randomly selected from the inside of the rectangle is closer to a side of the rectangle than to either diagonal of the rectangle. Find $m + n$.
A rectangle has side lengths $6$ and $8$. There are relatively prime positive integers $m$ and $n$ so that $\tfrac{m}{n}$ is the probability that a point randomly selected from the inside of the rectangle is closer to a side of the rectangle than to either diagonal of the rectangle. Find $m + n$.
2013 Purple Comet MS p20
The diagram below shows a $1\times2\times10$ duct with $2\times2\times2$ cubes attached to each end. The resulting object is empty, but the entire surface is solid sheet metal. A spider walks along the inside of the duct between the two marked corners. There are positive integers $m$ and $n$ so that the shortest path the spider could take has length $\sqrt{m}+\sqrt{n}$. Find $m + n$.
The diagram below shows a $1\times2\times10$ duct with $2\times2\times2$ cubes attached to each end. The resulting object is empty, but the entire surface is solid sheet metal. A spider walks along the inside of the duct between the two marked corners. There are positive integers $m$ and $n$ so that the shortest path the spider could take has length $\sqrt{m}+\sqrt{n}$. Find $m + n$.
2014 Purple Comet MS p1
In the diagram below $ABCD$ is a square and both $\triangle CFD$ and $\triangle CBE$ are equilateral. Find the degree measure of $\angle CEF$.
In the diagram below $ABCD$ is a square and both $\triangle CFD$ and $\triangle CBE$ are equilateral. Find the degree measure of $\angle CEF$.
2014 Purple Comet MS p3
The cross below is made up of five congruent squares. The perimeter of the cross is $72$. Find its area.
The cross below is made up of five congruent squares. The perimeter of the cross is $72$. Find its area.
2014 Purple Comet MS p5
The figure below shows a $9\times7$ arrangement of $2\times2$ squares. Alternate squares of the grid are split into two triangles with one of the triangles shaded. Find the area of the shaded region.
The figure below shows a $9\times7$ arrangement of $2\times2$ squares. Alternate squares of the grid are split into two triangles with one of the triangles shaded. Find the area of the shaded region.
2014 Purple Comet MS p7
Inside the $7\times8$ rectangle below, one point is chosen a distance $\sqrt2$ from the left side and a distance $\sqrt7$ from the bottom side. The line segments from that point to the four vertices of the rectangle are drawn. Find the area of the shaded region.
Inside the $7\times8$ rectangle below, one point is chosen a distance $\sqrt2$ from the left side and a distance $\sqrt7$ from the bottom side. The line segments from that point to the four vertices of the rectangle are drawn. Find the area of the shaded region.
2014 Purple Comet MS p9
The diagram below shows a shaded region bounded by a semicircular arc of a large circle and two smaller semicircular arcs. The smallest semicircle has radius $8$, and the shaded region has area $180\pi$. Find the diameter of the large circle.
The diagram below shows a shaded region bounded by a semicircular arc of a large circle and two smaller semicircular arcs. The smallest semicircle has radius $8$, and the shaded region has area $180\pi$. Find the diameter of the large circle.
2014 Purple Comet MS p15
A large rectangle is tiled by some $1\times1$ tiles. In the center there is a small rectangle tiled by some white tiles. The small rectangle is surrounded by a red border which is five tiles wide. That red border is surrounded by a white border which is five tiles wide. Finally, the white border is surrounded by a red border which is five tiles wide. The resulting pattern is pictured below. In all, $2900$ red tiles are used to tile the large rectangle. Find the perimeter of the large rectangle.
A large rectangle is tiled by some $1\times1$ tiles. In the center there is a small rectangle tiled by some white tiles. The small rectangle is surrounded by a red border which is five tiles wide. That red border is surrounded by a white border which is five tiles wide. Finally, the white border is surrounded by a red border which is five tiles wide. The resulting pattern is pictured below. In all, $2900$ red tiles are used to tile the large rectangle. Find the perimeter of the large rectangle.
2014 Purple Comet MS p17
Right triangle $ABC$ has a right angle at $C$. Point $D$ on side $\overline{AB}$ is the base of the altitude of $\triangle ABC$ from $C$. Point $E$ on side $\overline{BC}$ is the base of the altitude of $\triangle CBD$ from $D$. Given that $\triangle ACD$ has area $48$ and $\triangle CDE$ has area $40$, find the area of $\triangle DBE$.
Right triangle $ABC$ has a right angle at $C$. Point $D$ on side $\overline{AB}$ is the base of the altitude of $\triangle ABC$ from $C$. Point $E$ on side $\overline{BC}$ is the base of the altitude of $\triangle CBD$ from $D$. Given that $\triangle ACD$ has area $48$ and $\triangle CDE$ has area $40$, find the area of $\triangle DBE$.
2015 Purple Comet MS p2
The diagram below is made up of a rectangle AGHB, an equilateral triangle AFG, a rectangle ADEF, and a parallelogram ABCD. Find the degree measure of ∠ABC.
2015 Purple Comet MS p5
The diagram below is made up of a rectangle AGHB, an equilateral triangle AFG, a rectangle ADEF, and a parallelogram ABCD. Find the degree measure of ∠ABC.
The diagram below shows a rectangle with one side divided into seven equal segments and the opposite side divided in half. The rectangle has area 350. Find the area of the shaded region.
2015 Purple Comet MS p9
The figure below has only two sizes for its internal angles. The larger angles are three times the size of the smaller angles. Find the degree measure of one of the larger angles.
The figure below has only two sizes for its internal angles. The larger angles are three times the size of the smaller angles. Find the degree measure of one of the larger angles.
Right triangle ABC with a right angle at A has AB = 20 and AC = 15. Point D is on AB with BD = 2. Points E and F are placed on ray CA and ray CB, respectively, such that CD is a median of $\triangle$ CEF. Find the area of $\triangle$ CEF.
A courtyard has the shape of a parallelogram ABCD. At the corners of the courtyard there stand poles AA', BB', CC', and DD', each of which is perpendicular to the ground. The heights of these poles are AA' = 68 centimeters, BB' = 75 centimeters, CC' = 112 centimeters, and DD' = 133 centimeters. Find the distance in centimeters between the midpoints of A'C' and B'D'.
2015 Purple Comet MS p20
The diagram below shows an $8$x$7$ rectangle with a 3-4-5 right triangle drawn in each corner. The lower two triangles have their sides of length 4 along the bottom edge of the rectangle, while the upper two triangles have their sides of length 3 along the top edge of the rectangle. A circle is tangent to the hypotenuse of each triangle. The diameter of the circle is $\frac{m}{n}$ , where m and n are relatively prime positive integers. Find m + n.
The diagram below shows an $8$x$7$ rectangle with a 3-4-5 right triangle drawn in each corner. The lower two triangles have their sides of length 4 along the bottom edge of the rectangle, while the upper two triangles have their sides of length 3 along the top edge of the rectangle. A circle is tangent to the hypotenuse of each triangle. The diameter of the circle is $\frac{m}{n}$ , where m and n are relatively prime positive integers. Find m + n.
2016 Purple Comet MS p2
The figure below was formed by taking four squares, each with side length 5, and putting one on each side of a square with side length 20. Find the perimeter of the figure below.
2016 Purple Comet MS p4
The following diagram shows a square where each side has four dots that divide the side into three equal segments. The shaded region has area 105. Find the area of the original square
2016 Purple Comet MS p8
The following diagram shows a square where each side has four dots that divide the side into three equal segments. The shaded region has area 105. Find the area of the original square
The figure below has a 1 × 1 square, a 2 × 2 square, a 3 × 3 square, a 4 × 4 square, and a 5 × 5 square. Each of the larger squares shares a corner with the 1 × 1 square. Find the area of the region covered by these five squares.
2016 Purple Comet MS p10
Mildred the cow is tied with a rope to the side of a square shed with side length 10 meters. The rope is attached to the shed at a point two meters from one corner of the shed. The rope is 14 meters long. The area of grass growing around the shed that Mildred can reach is given by $n\pi$ square meters, where $n$ is a positive integer. Find $n$.
Mildred the cow is tied with a rope to the side of a square shed with side length 10 meters. The rope is attached to the shed at a point two meters from one corner of the shed. The rope is 14 meters long. The area of grass growing around the shed that Mildred can reach is given by $n\pi$ square meters, where $n$ is a positive integer. Find $n$.
2016 Purple Comet MS p16
he figure below shows a barn in the shape of two congruent pentagonal prisms that intersect at right angles and have a common center. The ends of the prisms are made of a 12 foot by 7 foot rectangle surmounted by an isosceles triangle with sides 10 feet, 10 feet, and 12 feet. Each prism is 30 feet long. Find the volume of the barn in cubic feet.
2017 Purple Comet MS p20
A right circular cone has a height equal to three times its base radius and has volume 1. The cone is inscribed inside a sphere as shown. The volume of the sphere is $\frac{m}{n}$, where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
The triangle below is divided into nine stripes of equal width each parallel to the base of the triangle. The darkened stripes have a total area of $135$. Find the total area of the light colored stripes.
2018 Purple Comet MS p12
Line segment $\overline{AB}$ has perpendicular bisector $\overline{CD}$, where $C$ is the midpoint of $\overline{AB}$. The segments have lengths $AB = 72$ and $CD = 60$. Let $R$ be the set of points $P$ that are midpoints of line segments $\overline{XY}$ , where $X$ lies on $\overline{AB}$ and $Y$ lies on $\overline{CD}$. Find the area of the region $R$.
he figure below shows a barn in the shape of two congruent pentagonal prisms that intersect at right angles and have a common center. The ends of the prisms are made of a 12 foot by 7 foot rectangle surmounted by an isosceles triangle with sides 10 feet, 10 feet, and 12 feet. Each prism is 30 feet long. Find the volume of the barn in cubic feet.
2017 Purple Comet MS p2
The figure below was made by gluing together 5 non-overlapping congruent squares. The figure has area 45. Find the perimeter of the figure.
The figure below was made by gluing together 5 non-overlapping congruent squares. The figure has area 45. Find the perimeter of the figure.
2017 Purple Comet MS p4
The following diagram includes six circles with radius 4, one circle with radius 8, and one circle with radius 16. The area of the shaded region is $k\pi$. Find $k$.
The following diagram includes six circles with radius 4, one circle with radius 8, and one circle with radius 16. The area of the shaded region is $k\pi$. Find $k$.
2017 Purple Comet MS p9
n $\triangle{ADE}$ points $B$ and $C$ are on side $AD$ and points $F$ and $G$ are on side $AE$ so that $BG \parallel CF \parallel DE$, as shown. The area of $\triangle{ABG}$ is $36$, the area of trapezoid $CFED$ is $144$, and $AB = CD$. Find the area of trapezoid $BGFC$.
n $\triangle{ADE}$ points $B$ and $C$ are on side $AD$ and points $F$ and $G$ are on side $AE$ so that $BG \parallel CF \parallel DE$, as shown. The area of $\triangle{ABG}$ is $36$, the area of trapezoid $CFED$ is $144$, and $AB = CD$. Find the area of trapezoid $BGFC$.
A right circular cone has a height equal to three times its base radius and has volume 1. The cone is inscribed inside a sphere as shown. The volume of the sphere is $\frac{m}{n}$, where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
2018 Purple Comet MS p2
The following figure is made up of many $2$ × $4$ tiles such that adjacent tiles always share an edge of length $2$. Find the perimeter of this figure.
The following figure is made up of many $2$ × $4$ tiles such that adjacent tiles always share an edge of length $2$. Find the perimeter of this figure.
2018 Purple Comet MS p4
The diagram below shows a large square with each of its sides divided into four equal segments. The shaded square whose sides are diagonals drawn to these division points has area $13$. Find the area of the large square.
2018 Purple Comet MS p8
On side $AE$ of regular pentagon $ABCDE$ there is an equilateral triangle $AEF$, and on side $AB$ of the pentagon there is a square $ABHG$ as shown. Find the degree measure of angle $AFG$.
On side $AE$ of regular pentagon $ABCDE$ there is an equilateral triangle $AEF$, and on side $AB$ of the pentagon there is a square $ABHG$ as shown. Find the degree measure of angle $AFG$.
The triangle below is divided into nine stripes of equal width each parallel to the base of the triangle. The darkened stripes have a total area of $135$. Find the total area of the light colored stripes.
Line segment $\overline{AB}$ has perpendicular bisector $\overline{CD}$, where $C$ is the midpoint of $\overline{AB}$. The segments have lengths $AB = 72$ and $CD = 60$. Let $R$ be the set of points $P$ that are midpoints of line segments $\overline{XY}$ , where $X$ lies on $\overline{AB}$ and $Y$ lies on $\overline{CD}$. Find the area of the region $R$.
2018 Purple Comet MS p16
On $\vartriangle ABC$ let $D$ be a point on side $\overline{AB}$, $F$ be a point on side $\overline{AC}$, and $E$ be a point inside the triangle so that $\overline{DE}\parallel \overline{AC}$ and $\overline{EF} \parallel \overline{AB}$. Given that $AF = 6, AC = 33, AD = 7, AB = 26$, and the area of quadrilateral $ADEF$ is $14$, nd the area of $\vartriangle ABC$.
On $\vartriangle ABC$ let $D$ be a point on side $\overline{AB}$, $F$ be a point on side $\overline{AC}$, and $E$ be a point inside the triangle so that $\overline{DE}\parallel \overline{AC}$ and $\overline{EF} \parallel \overline{AB}$. Given that $AF = 6, AC = 33, AD = 7, AB = 26$, and the area of quadrilateral $ADEF$ is $14$, nd the area of $\vartriangle ABC$.
2018 Purple Comet MS p18
Rectangle $ABCD$ has side lengths $AB = 6\sqrt3$ and $BC = 8\sqrt3$. The probability that a randomly chosen point inside the rectangle is closer to the diagonal $\overline{AC}$ than to the outside of the rectangle is $\frac{m}{n}$ , where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
Rectangle $ABCD$ has side lengths $AB = 6\sqrt3$ and $BC = 8\sqrt3$. The probability that a randomly chosen point inside the rectangle is closer to the diagonal $\overline{AC}$ than to the outside of the rectangle is $\frac{m}{n}$ , where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
2018 Purple Comet MS p20
Let $ABCD$ be a square with side length $6$. Circles $X, Y$ , and $Z$ are congruent circles with centers inside the square such that $X$ is tangent to both sides $\overline{AB}$ and $\overline{AD}$, $Y$ is tangent to both sides $\overline{AB}$ and $\overline{BC}$, and $Z$ is tangent to side $\overline{CD}$ and both circles $X$ and $Y$ . The radius of the circle $X$ can be written $m -\sqrt{n}$, where $m$ and $n$ are positive integers. Find $m + n$.
2019 Purple Comet MS p9
A semicircle has diameter $\overline{AD}$ with $AD = 30$. Points $B$ and $C$ lie on $\overline{AD}$, and points $E$ and $F$ lie on the arc of the semicircle. The two right triangles $\vartriangle BCF$ and $\vartriangle CDE$ are congruent. The area of $\vartriangle BCF$ is $m\sqrt{n}$, where $m$ and $n$ are positive integers, and $n$ is not divisible by the square of any prime. Find $m + n$.
2019 Purple Comet MS p13
Squares $ABCD$ and $AEFG$ each with side length $12$ overlap so that $\vartriangle AED$ is an equilateral triangle as shown. The area of the region that is in the interior of both squares which is shaded in the diagram is $m\sqrt{n}$, where $m$ and $n$ are positive integers, and $n$ is not divisible by the square of any prime. Find $m + n$.
Let $ABCD$ be a square with side length $6$. Circles $X, Y$ , and $Z$ are congruent circles with centers inside the square such that $X$ is tangent to both sides $\overline{AB}$ and $\overline{AD}$, $Y$ is tangent to both sides $\overline{AB}$ and $\overline{BC}$, and $Z$ is tangent to side $\overline{CD}$ and both circles $X$ and $Y$ . The radius of the circle $X$ can be written $m -\sqrt{n}$, where $m$ and $n$ are positive integers. Find $m + n$.
The diagram shows a polygon made by removing six $2\times 2$ squares from the sides of an $8\times 12$ rectangle. Find the perimeter of this polygon.
2019 Purple Comet MS p3
The diagram below shows a shaded region bounded by two concentric circles where the outer circle has twice the radius of the inner circle. The total boundary of the shaded region has length $36\pi$. Find $n$ such that the area of the shaded region is $n\pi$.
The diagram below shows a shaded region bounded by two concentric circles where the outer circle has twice the radius of the inner circle. The total boundary of the shaded region has length $36\pi$. Find $n$ such that the area of the shaded region is $n\pi$.
2019 Purple Comet MS p7
The diagram shows some squares whose sides intersect other squares at the midpoints of their sides. The shaded region has total area $7$. Find the area of the largest square.
The diagram shows some squares whose sides intersect other squares at the midpoints of their sides. The shaded region has total area $7$. Find the area of the largest square.
A semicircle has diameter $\overline{AD}$ with $AD = 30$. Points $B$ and $C$ lie on $\overline{AD}$, and points $E$ and $F$ lie on the arc of the semicircle. The two right triangles $\vartriangle BCF$ and $\vartriangle CDE$ are congruent. The area of $\vartriangle BCF$ is $m\sqrt{n}$, where $m$ and $n$ are positive integers, and $n$ is not divisible by the square of any prime. Find $m + n$.
Squares $ABCD$ and $AEFG$ each with side length $12$ overlap so that $\vartriangle AED$ is an equilateral triangle as shown. The area of the region that is in the interior of both squares which is shaded in the diagram is $m\sqrt{n}$, where $m$ and $n$ are positive integers, and $n$ is not divisible by the square of any prime. Find $m + n$.
2019 Purple Comet MS p16
Four congruent semicircular half-disks are arranged inside a circle with radius $4$ so that each semicircle is internally tangent to the circle, and the diameters of the semicircles form a $2\times 2$ square centered at the center of the circle as shown. The radius of each semicircular half-disk is $\frac{m}{n}$ , where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
Four congruent semicircular half-disks are arranged inside a circle with radius $4$ so that each semicircle is internally tangent to the circle, and the diameters of the semicircles form a $2\times 2$ square centered at the center of the circle as shown. The radius of each semicircular half-disk is $\frac{m}{n}$ , where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
2019 Purple Comet MS p19
Rectangle $ABCD$ has sides $AB = 10$ and $AD = 7$. Point $G$ lies in the interior of $ABCD$ a distance $2$ from side $\overline{CD}$ and a distance $2$ from side $\overline{BC}$. Points $H, I, J$, and $K$ are located on sides $\overline{BC}, \overline{AB}, \overline{AD}$, and $\overline{CD}$, respectively, so that the path $GHIJKG$ is as short as possible. Then $AJ = \frac{m}{n}$ , where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
2020 Purple Comet MS p2
The diagram below shows a $18\times 35$ rectangle with eight points marked that divide each side into three equal parts. Four triangles are removed from each of the corners of the rectangle leaving the shaded region. Find the area of this shaded region.
Rectangle $ABCD$ has sides $AB = 10$ and $AD = 7$. Point $G$ lies in the interior of $ABCD$ a distance $2$ from side $\overline{CD}$ and a distance $2$ from side $\overline{BC}$. Points $H, I, J$, and $K$ are located on sides $\overline{BC}, \overline{AB}, \overline{AD}$, and $\overline{CD}$, respectively, so that the path $GHIJKG$ is as short as possible. Then $AJ = \frac{m}{n}$ , where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
2020 Purple Comet MS p2
The diagram below shows a $18\times 35$ rectangle with eight points marked that divide each side into three equal parts. Four triangles are removed from each of the corners of the rectangle leaving the shaded region. Find the area of this shaded region.
2020 Purple Comet MS p4
The gure below shows a large circle with area $120$ containing a circle with half of the radius of the large circle and six circles with a quarter of the radius of the large circle. Find the area of the shaded region.
The gure below shows a large circle with area $120$ containing a circle with half of the radius of the large circle and six circles with a quarter of the radius of the large circle. Find the area of the shaded region.
2020 Purple Comet MS p7
Find a positive integer $n$ such that there is a polygon with $n$ sides where each of its interior angles measures $177^o$
Find a positive integer $n$ such that there is a polygon with $n$ sides where each of its interior angles measures $177^o$
2020 Purple Comet MS p15
Daniel had a string that formed the perimeter of a square with area $98$. Daniel cut the string into two pieces. With one piece he formed the perimeter of a rectangle whose width and length are in the ratio $2 : 3$. With the other piece he formed the perimeter of a rectangle whose width and length are in the ratio $3 : 8$. The two rectangles that Daniel formed have the same area, and each of those areas is $\frac{m}{n}$ , where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
Daniel had a string that formed the perimeter of a square with area $98$. Daniel cut the string into two pieces. With one piece he formed the perimeter of a rectangle whose width and length are in the ratio $2 : 3$. With the other piece he formed the perimeter of a rectangle whose width and length are in the ratio $3 : 8$. The two rectangles that Daniel formed have the same area, and each of those areas is $\frac{m}{n}$ , where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
2020 Purple Comet MS p17
Construct a geometric gure in a sequence of steps. In step $1$, begin with a $4\times 4$ square. In step $2$, attach a $1\times 1$ square onto the each side of the original square so that the new squares are on the outside of the original square, have a side along the side of the original square, and the midpoints of the sides of the original square and the attached square coincide. In step $3$, attach a $\frac14\times \frac14$ square onto the centers of each of the $3$ exposed sides of each of the $4$ squares attached in step $2$. For each positive integer $n$, in step $n + 1$, attach squares whose sides are $\frac14$ as long as the sides of the squares attached in step n placing them at the centers of the $3$ exposed sides of the squares attached in step $n$. The diagram shows the gure after step $4$.
If this is continued for all positive integers $n$, the area covered by all the squares attached in all the steps is $\frac{p}{q}$ , where $p$ and $q$ are relatively prime positive integers. Find $p + q$.
Construct a geometric gure in a sequence of steps. In step $1$, begin with a $4\times 4$ square. In step $2$, attach a $1\times 1$ square onto the each side of the original square so that the new squares are on the outside of the original square, have a side along the side of the original square, and the midpoints of the sides of the original square and the attached square coincide. In step $3$, attach a $\frac14\times \frac14$ square onto the centers of each of the $3$ exposed sides of each of the $4$ squares attached in step $2$. For each positive integer $n$, in step $n + 1$, attach squares whose sides are $\frac14$ as long as the sides of the squares attached in step n placing them at the centers of the $3$ exposed sides of the squares attached in step $n$. The diagram shows the gure after step $4$.
If this is continued for all positive integers $n$, the area covered by all the squares attached in all the steps is $\frac{p}{q}$ , where $p$ and $q$ are relatively prime positive integers. Find $p + q$.
Right $\vartriangle ABC$ has side lengths $6, 8$, and $10$. Find the positive integer $n$ such that the area of the region inside the circumcircle but outside the incircle of $\vartriangle ABC$ is $n\pi$.
2020 Purple Comet MS p19
Right $\vartriangle ABC$ has side lengths $6, 8$, and $10$. Find the positive integer $n$ such that the area of the region inside the circumcircle but outside the incircle of $\vartriangle ABC$ is $n\pi$.
High School HS
2003 Purple Comet MS HS p2
The lengths of the diagonals of a rhombus are, in inches, two consecutive integers. The area of the rhombus is $210$ sq. in. Find its perimeter, in inches.
2003 Purple Comet MS HS p8
Let $ABCDEFGHIJKL$ be a regular dodecagon. Find $\frac{AB}{AF} + \frac{AF}{AB}$.
2003 Purple Comet MS HS p18
A circle radius $320$ is tangent to the inside of a circle radius $1000$. The smaller circle is tangent to a diameter of the larger circle at a point $P$. How far is the point $P$ from the outside of the larger circle?
2003 Purple Comet MS HS p22
In $\triangle ABC$, max $\{\angle A, \angle B \} = \angle C + 30^{\circ}$ and $\frac{R}{r} = \sqrt{3} + 1$, where $R$ is the radius of the circumcircle and $r$ is the radius of the incircle. Find $\angle C$ in degrees.
2003 Purple Comet MS HS p24
In $\triangle ABC$, $\angle A = 30^{\circ}$ and $AB = AC = 16$ in. Let $D$ lie on segment $BC$ such that $\frac{DB}{DC} = \frac23$ . Let $E$ and $F$ be the orthogonal projections of $D$ onto $AB$ and $AC$, respectively. Find $DE + DF$ in inches.
2004 Purple Comet HS p2
In $\triangle ABC$, three lines are drawn parallel to side $BC$ dividing the altitude of the triangle into four equal parts. If the area of the second largest part is $35$, what is the area of the whole $\triangle ABC$?
The lengths of the diagonals of a rhombus are, in inches, two consecutive integers. The area of the rhombus is $210$ sq. in. Find its perimeter, in inches.
2003 Purple Comet MS HS p8
Let $ABCDEFGHIJKL$ be a regular dodecagon. Find $\frac{AB}{AF} + \frac{AF}{AB}$.
2003 Purple Comet MS HS p18
A circle radius $320$ is tangent to the inside of a circle radius $1000$. The smaller circle is tangent to a diameter of the larger circle at a point $P$. How far is the point $P$ from the outside of the larger circle?
2003 Purple Comet MS HS p22
In $\triangle ABC$, max $\{\angle A, \angle B \} = \angle C + 30^{\circ}$ and $\frac{R}{r} = \sqrt{3} + 1$, where $R$ is the radius of the circumcircle and $r$ is the radius of the incircle. Find $\angle C$ in degrees.
2003 Purple Comet MS HS p24
In $\triangle ABC$, $\angle A = 30^{\circ}$ and $AB = AC = 16$ in. Let $D$ lie on segment $BC$ such that $\frac{DB}{DC} = \frac23$ . Let $E$ and $F$ be the orthogonal projections of $D$ onto $AB$ and $AC$, respectively. Find $DE + DF$ in inches.
2004 Purple Comet HS p2
In $\triangle ABC$, three lines are drawn parallel to side $BC$ dividing the altitude of the triangle into four equal parts. If the area of the second largest part is $35$, what is the area of the whole $\triangle ABC$?
2004 Purple Comet HS p10
Three lines are drawn parallel to each of the three sides of $\triangle ABC$ so that the three lines intersect in the interior of $ABC$. The resulting three smaller triangles have areas $1$, $4$, and $9$. Find the area of $\triangle ABC$.
Three lines are drawn parallel to each of the three sides of $\triangle ABC$ so that the three lines intersect in the interior of $ABC$. The resulting three smaller triangles have areas $1$, $4$, and $9$. Find the area of $\triangle ABC$.
2004 Purple Comet HS p12
The diagram shows a circle with radius $24$ which contains two circles with radius $12$ tangent to each other and the larger circle. The smallest circle is tangent to the three other circles. What is the radius of the smallest circle?
The diagram shows a circle with radius $24$ which contains two circles with radius $12$ tangent to each other and the larger circle. The smallest circle is tangent to the three other circles. What is the radius of the smallest circle?
2004 Purple Comet HS p14
Two circles have radii $15$ and $95$. If the two external tangents to the circles intersect at $60$ degrees, how far apart are the centers of the circles?
Two circles have radii $15$ and $95$. If the two external tangents to the circles intersect at $60$ degrees, how far apart are the centers of the circles?
2004 Purple Comet HS p20
A $70$ foot pole stands vertically in a plane supported by three $490$ foot wires, all attached to the top of the pole, pulled taut, and anchored to three equally spaced points in the plane. How many feet apart are any two of those anchor points?
A $70$ foot pole stands vertically in a plane supported by three $490$ foot wires, all attached to the top of the pole, pulled taut, and anchored to three equally spaced points in the plane. How many feet apart are any two of those anchor points?
2004 Purple Comet HS p22
How many non-overlapping $2$ by $2$ squares will fit into a circle with radius $8$?
How many non-overlapping $2$ by $2$ squares will fit into a circle with radius $8$?
2005 Purple Comet HS p2
We glue together $990$ one inch cubes into a $9$ by $10$ by $11$ inch rectangular solid. Then we paint the outside of the solid. How many of the original $990$ cubes have just one of their sides painted?
2005 Purple Comet HS p6
$ABCDE$ is a regular pentagon. What is the degree measure of the acute angle at the intersection of line segments $AC$ and $BD$?
2005 Purple Comet HS p9
Let $T$ be a $30-60-90$ triangle with hypotenuse of length $20$. Three circles, each externally tangent to the other two, have centers at the three vertices of $T$. The area of the union of the circles intersected with $T$ is $(m + n \sqrt{3}) \pi$ for rational numbers $m$ and $n$. Find $m + n$.
Let $T$ be a $30-60-90$ triangle with hypotenuse of length $20$. Three circles, each externally tangent to the other two, have centers at the three vertices of $T$. The area of the union of the circles intersected with $T$ is $(m + n \sqrt{3}) \pi$ for rational numbers $m$ and $n$. Find $m + n$.
2005 Purple Comet HS p18
The side lengths of a trapezoid are $\sqrt[4]{3}, \sqrt[4]{3}, \sqrt[4]{3}$, and $2 \cdot \sqrt[4]{3}$. Its area is the ratio of two relatively prime positive integers, $m$ and $n$. Find $m + n$.
The side lengths of a trapezoid are $\sqrt[4]{3}, \sqrt[4]{3}, \sqrt[4]{3}$, and $2 \cdot \sqrt[4]{3}$. Its area is the ratio of two relatively prime positive integers, $m$ and $n$. Find $m + n$.
2005 Purple Comet HS p21
In the diagram below $ \angle CAB, \angle CBD$, and $\angle CDE$ are all right angles with side lengths $AC = 3$, $BC = 5$, $BD = 12$, and $DE = 84$. The distance from point $E$ to the line $AB$ can be expressed as the ratio of two relatively prime positive integers, $m$ and $n$. Find $m + n$.
In the diagram below $ \angle CAB, \angle CBD$, and $\angle CDE$ are all right angles with side lengths $AC = 3$, $BC = 5$, $BD = 12$, and $DE = 84$. The distance from point $E$ to the line $AB$ can be expressed as the ratio of two relatively prime positive integers, $m$ and $n$. Find $m + n$.
$\triangle ABC$ has area $240$. Points $X, Y, Z$ lie on sides $AB$, $BC$, and $CA$, respectively. Given that $\frac{AX}{BX} = 3$, $\frac{BY}{CY} = 4$, and $\frac{CZ}{AZ} = 5$, find the area of $\triangle XYZ$.
2006 Purple Comet HS p3
Point $P$ lies outside a circle, and two rays are drawn from $P$ that intersect the circle as shown. One ray intersects the circle at points $A$ and $B$ while the other ray intersects the circle at $M$ and $N$. $AN$ and $MB$ intersect at $X$. Given that $\angle AXB$ measures $127^{\circ}$ and the minor arc $AM$ measures $14^{\circ}$, compute the measure of the angle at $P$.
Point $P$ lies outside a circle, and two rays are drawn from $P$ that intersect the circle as shown. One ray intersects the circle at points $A$ and $B$ while the other ray intersects the circle at $M$ and $N$. $AN$ and $MB$ intersect at $X$. Given that $\angle AXB$ measures $127^{\circ}$ and the minor arc $AM$ measures $14^{\circ}$, compute the measure of the angle at $P$.
2006 Purple Comet HS p10
An equilateral triangle with side length $6$ has a square of side length $6$ attached to each of its edges as shown. The distance between the two farthest vertices of this figure (marked $A$ and $B$ in the figure) can be written as $m + \sqrt{n}$ where $m$ and $n$ are positive integers. Find $m + n$.
2006 Purple Comet HS p12
2006 Purple Comet HS p15
A snowman is built on a level plane by placing a ball radius $6$ on top of a ball radius $8$ on top of a ball radius $10$ as shown. If the average height above the plane of a point in the snowman is $\frac{m}{n}$ where $m$ and $n$ are relatively prime positive integers, find $m + n$.
2006 Purple Comet HS p17
A concrete sewer pipe fitting is shaped like a cylinder with diameter $48$ with a cone on top. A cylindrical hole of diameter $30$ is bored all the way through the center of the fitting as shown. The cylindrical portion has height $60$ while the conical top portion has height $20$. Find $N$ such that the volume of the concrete is $N \pi$.
2012 Purple Comet HS p3
The diagram below shows a large square divided into nine congruent smaller squares. There are circles inscribed in five of the smaller squares. The total area covered by all the five circles is $20\pi$. Find the area of the large square.
2012 Purple Comet HS p7
Two convex polygons have a total of 33 sides and 243 diagonals. Find the number of diagonals in the polygon with the greater number of sides.
2012 Purple Comet HS p20
Square $ABCD$ has side length $68$. Let $E$ be the midpoint of segment $\overline{CD}$, and let $F$ be the point on segment $\overline{AB}$ a distance $17$ from point $A$. Point $G$ is on segment $\overline{EF}$ so that $\overline{EF}$ is perpendicular to segment $\overline{GD}$. The length of segment $\overline{BG}$ can be written as $m\sqrt{n}$ where $m$ and $n$ are positive integers, and $n$ is not divisible by the square of any prime. Find $m+n$.
An equilateral triangle with side length $6$ has a square of side length $6$ attached to each of its edges as shown. The distance between the two farthest vertices of this figure (marked $A$ and $B$ in the figure) can be written as $m + \sqrt{n}$ where $m$ and $n$ are positive integers. Find $m + n$.
We draw a triangle inside of a circle with one vertex at the center of the circle and the other two vertices on the circumference of the circle. The angle at the center of the circle measures $75$ degrees. We draw a second triangle, congruent to the first, also with one vertex at the center of the circle and the other vertices on the circumference of the circle rotated $75$ degrees clockwise from the first triangle so that it shares a side with the first triangle. We draw a third, fourth, and fifth such triangle each rotated $75$ degrees clockwise from the previous triangle. The base of the fifth triangle will intersect the base of the first triangle. What is the degree measure of the obtuse angle formed by the intersection?
A snowman is built on a level plane by placing a ball radius $6$ on top of a ball radius $8$ on top of a ball radius $10$ as shown. If the average height above the plane of a point in the snowman is $\frac{m}{n}$ where $m$ and $n$ are relatively prime positive integers, find $m + n$.
A concrete sewer pipe fitting is shaped like a cylinder with diameter $48$ with a cone on top. A cylindrical hole of diameter $30$ is bored all the way through the center of the fitting as shown. The cylindrical portion has height $60$ while the conical top portion has height $20$. Find $N$ such that the volume of the concrete is $N \pi$.
2006 Purple Comet HS p21
A semicircle with diameter length $16$ contains a circle radius $3$ tangent both to the inside of the semicircle and its diameter as shown. A second larger circle is tangent to the inside of the semicircle, the outside of the circle, and the diameter of the semicircle. The diameter of the second circle can be written as $\frac{n + k\sqrt{2}}{m}$ where $m$, $n$, and $k$ are positive integers and $m$ and $n$ have no factors in common. Find $m + n + k$.
2007 Purple Comet HS p3
To the nearest degree, find the measure of the largest angle in a triangle with side lengths $3$, $5$, and $7$.
2007 Purple Comet HS p11
A dart board looks like three concentric circles with radii of 4, 6, and 8. Three darts are thrown at the board so that they stick at three random locations on then board. The probability that one dart sticks in each of the three regions of the dart board is $\dfrac{m}{n}$ where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
In triangle $ABC$, $AB = 52$, $BC = 56$, $CA = 60$. Let $D$ be the foot of the altitude from $A$ and $E$ be the intersection of the internal angle bisector of $\angle BAC$ with $BC$. Find $DE$.
2006 Purple Comet HS p24A semicircle with diameter length $16$ contains a circle radius $3$ tangent both to the inside of the semicircle and its diameter as shown. A second larger circle is tangent to the inside of the semicircle, the outside of the circle, and the diameter of the semicircle. The diameter of the second circle can be written as $\frac{n + k\sqrt{2}}{m}$ where $m$, $n$, and $k$ are positive integers and $m$ and $n$ have no factors in common. Find $m + n + k$.
To the nearest degree, find the measure of the largest angle in a triangle with side lengths $3$, $5$, and $7$.
2007 Purple Comet HS p11
A dart board looks like three concentric circles with radii of 4, 6, and 8. Three darts are thrown at the board so that they stick at three random locations on then board. The probability that one dart sticks in each of the three regions of the dart board is $\dfrac{m}{n}$ where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
2007 Purple Comet HS p13
Find the circumradius of the triangle with side lengths $104$, $112$, and $120$.
Find the circumradius of the triangle with side lengths $104$, $112$, and $120$.
2007 Purple Comet HS p17
A circle with diameter $20$ has points $A, B, C, D, E,$ and $F$ equally spaced along its circumference. A second circle is tangent to the lines $AB$ and $AF$ and internally tangent to the circle. If the second circle has diameter $\sqrt{m}+n$ for integers $m$ and $n$, find $m + n.$
2007 Purple Comet HS p20
Three congruent ellipses are mutually tangent. Their major axes are parallel. Two of the ellipses are tangent at the end points of their minor axes as shown. The distance between the centers of these two ellipses is $4$. The distances from those two centers to the center of the third ellipse are both $14$. There are positive integers m and n so that the area between these three ellipses is $\sqrt{n}-m \pi$. Find $m+n$.
Three congruent ellipses are mutually tangent. Their major axes are parallel. Two of the ellipses are tangent at the end points of their minor axes as shown. The distance between the centers of these two ellipses is $4$. The distances from those two centers to the center of the third ellipse are both $14$. There are positive integers m and n so that the area between these three ellipses is $\sqrt{n}-m \pi$. Find $m+n$.
2007 Purple Comet HS p23
Two circles with radius $2$ and radius $4$ have a common center at P. Points $A, B,$ and $C$ on the larger circle are the vertices of an equilateral triangle. Point $D$ is the intersection of the smaller circle and the line segment $PB$. Find the square of the area of triangle $ADC$.
Two circles with radius $2$ and radius $4$ have a common center at P. Points $A, B,$ and $C$ on the larger circle are the vertices of an equilateral triangle. Point $D$ is the intersection of the smaller circle and the line segment $PB$. Find the square of the area of triangle $ADC$.
2008 Purple Comet HS p8
A container is shaped like a square-based pyramid where the base has side length $23$ centimeters and the height is $120$ centimeters. The container is open at the base of the pyramid and stands in an open field with its vertex pointing down. One afternoon $5$ centimeters of rain falls in the open field partially filling the previously empty container. Find the depth in centimeters of the rainwater in the bottom of the container after the rain.
A container is shaped like a square-based pyramid where the base has side length $23$ centimeters and the height is $120$ centimeters. The container is open at the base of the pyramid and stands in an open field with its vertex pointing down. One afternoon $5$ centimeters of rain falls in the open field partially filling the previously empty container. Find the depth in centimeters of the rainwater in the bottom of the container after the rain.
2008 Purple Comet HS p11
Six regular octagons each with sides of length 2 are placed in a two-by-three array and inscribed in a square as shown. The area of the square can be written in the form $m+n\sqrt{2}$ where $m$ and $n$ are positive integers. Find $m+n$.
Six regular octagons each with sides of length 2 are placed in a two-by-three array and inscribed in a square as shown. The area of the square can be written in the form $m+n\sqrt{2}$ where $m$ and $n$ are positive integers. Find $m+n$.
2008 Purple Comet HS p16
Square ABCD has side length 7. Let $A_1$, $B_1$, $C_1$, and $D_1$ be points on rays $\overrightarrow{AB}$, $\overrightarrow{BC}$, $\overrightarrow{CD}$, and $\overrightarrow{DA}$, respectively, where each point is $3$ units from the end of the ray so that $A_1B_1C_1D_1$ forms a second square as shown. SImilarly, let $A_2$, $B_2$, $C_2$, and $D_2$ be points on segments $A_1B_1$, $B_1C_1$, $C_1D_1$, and $D_1A_1$, respectively, forming another square where $A_2$ divides segment $A_1B_1$ into two pieces whose lengths are in the same ratio as $AA_1$ is to $A_1B$. Continue this process to construct square $A_nB_nC_nD_n$ for each positive integer $n$. Find the total of all the perimeters of all the squares.
Square ABCD has side length 7. Let $A_1$, $B_1$, $C_1$, and $D_1$ be points on rays $\overrightarrow{AB}$, $\overrightarrow{BC}$, $\overrightarrow{CD}$, and $\overrightarrow{DA}$, respectively, where each point is $3$ units from the end of the ray so that $A_1B_1C_1D_1$ forms a second square as shown. SImilarly, let $A_2$, $B_2$, $C_2$, and $D_2$ be points on segments $A_1B_1$, $B_1C_1$, $C_1D_1$, and $D_1A_1$, respectively, forming another square where $A_2$ divides segment $A_1B_1$ into two pieces whose lengths are in the same ratio as $AA_1$ is to $A_1B$. Continue this process to construct square $A_nB_nC_nD_n$ for each positive integer $n$. Find the total of all the perimeters of all the squares.
2008 Purple Comet HS p18
The diagram below contains eight line segments, all the same length. Each of the angles formed by the intersections of two segments is either a right angle or a $45$ degree angle. If the outside square has area $1000$, find the largest integer less than or equal to the area of the inside square.
The diagram below contains eight line segments, all the same length. Each of the angles formed by the intersections of two segments is either a right angle or a $45$ degree angle. If the outside square has area $1000$, find the largest integer less than or equal to the area of the inside square.
2008 Purple Comet HS p19
One side of a triangle has length $75$. Of the other two sides, the length of one is double the length of the other. What is the maximum possible area for this triangle
One side of a triangle has length $75$. Of the other two sides, the length of one is double the length of the other. What is the maximum possible area for this triangle
2008 Purple Comet HS p23
Circle $B$, which has radius 2008, is tangent to horizontal line $A$ at point $P$. Circle $C_1$ has radius 1 and is tangent both to circle $B$ and to line $A$ at a point to the right of point $P$. Circle $C_2$ has radius larger than 1 and is tangent to line $A$ and both circles B and $C_1$. For $n>1$, circle $C_n$ is tangent to line $A$ and both circles $B$ and $C_{n-1}$. Find the largest value of n such that this sequence of circles can be constructed through circle $C_n$ where the n circles are all tangent to line $A$ at points to the right of $P$.
Circle $B$, which has radius 2008, is tangent to horizontal line $A$ at point $P$. Circle $C_1$ has radius 1 and is tangent both to circle $B$ and to line $A$ at a point to the right of point $P$. Circle $C_2$ has radius larger than 1 and is tangent to line $A$ and both circles B and $C_1$. For $n>1$, circle $C_n$ is tangent to line $A$ and both circles $B$ and $C_{n-1}$. Find the largest value of n such that this sequence of circles can be constructed through circle $C_n$ where the n circles are all tangent to line $A$ at points to the right of $P$.
2008 Purple Comet HS p25
Let $S$ S be a point chosen at random from the interior of the square $ABCD$, which has side $AB$ and diagonal $AC$. Let $P$ be the probability that the segments $AS$, $SB$, and $AC$ are congruent to the sides of a triangle. Then $P$ can be written as $\dfrac{a-\pi\sqrt{b}-\sqrt{c}}{d}$ where $a,b,c,$ and $d$ are all positive integers and $d$ is as small as possible. Find $ab+cd$.
Let $S$ S be a point chosen at random from the interior of the square $ABCD$, which has side $AB$ and diagonal $AC$. Let $P$ be the probability that the segments $AS$, $SB$, and $AC$ are congruent to the sides of a triangle. Then $P$ can be written as $\dfrac{a-\pi\sqrt{b}-\sqrt{c}}{d}$ where $a,b,c,$ and $d$ are all positive integers and $d$ is as small as possible. Find $ab+cd$.
2009 Purple Comet HS p3
In the diagram $ABCDEFG$ is a regular heptagon (a $7$ sided polygon). Shown is the star $AEBFCGD$. The degree measure of the obtuse angle formed by $AE$ and $CG$ is $\dfrac{m}{n}$ where m and n are relatively prime positive integers. Find $m + n$.
In the diagram $ABCDEFG$ is a regular heptagon (a $7$ sided polygon). Shown is the star $AEBFCGD$. The degree measure of the obtuse angle formed by $AE$ and $CG$ is $\dfrac{m}{n}$ where m and n are relatively prime positive integers. Find $m + n$.
2009 Purple Comet HS p7
The figure $ABCD$ is bounded by a semicircle $CDA$ and a quarter circle $ABC$. Given that the distance from $A$ to $C$ is $18$, find the area of the figure.
The figure $ABCD$ is bounded by a semicircle $CDA$ and a quarter circle $ABC$. Given that the distance from $A$ to $C$ is $18$, find the area of the figure.
2009 Purple Comet HS p11
The four points $A(-1,2), B(3,-4), C(5,-6),$ and $D(-2,8)$ lie in the coordinate plane. Compute the minimum possible value of $PA + PB + PC + PD$ over all points P .
The four points $A(-1,2), B(3,-4), C(5,-6),$ and $D(-2,8)$ lie in the coordinate plane. Compute the minimum possible value of $PA + PB + PC + PD$ over all points P .
2008 Purple Comet HS p14
Let $ABCD$ be a trapezoid with $AB$ parallel to $CD, AB$ has length $1,$ and $CD$ has length $41.$ Let points $X$ and $Y$ lie on sides $AD$ and $BC,$ respectively, such that $XY$ is parallel to $AB$ and $CD,$ and $XY$ has length $31.$ Let $m$ and $n$ be two relatively prime positive integers such that the ratio of the area of $ABYX$ to the area of $CDXY$ is $\tfrac{m}{n}.$ Find $m+2n.$
Let $ABCD$ be a trapezoid with $AB$ parallel to $CD, AB$ has length $1,$ and $CD$ has length $41.$ Let points $X$ and $Y$ lie on sides $AD$ and $BC,$ respectively, such that $XY$ is parallel to $AB$ and $CD,$ and $XY$ has length $31.$ Let $m$ and $n$ be two relatively prime positive integers such that the ratio of the area of $ABYX$ to the area of $CDXY$ is $\tfrac{m}{n}.$ Find $m+2n.$
2009 Purple Comet HS p18
On triangle $ABC$ let $D$ be the point on $AB$ so that $CD$ is an altitude of the triangle, and $E$ be the point on $BC$ so that $AE$ bisects angle $BAC.$ Let $G$ be the intersection of $AE$ and $CD,$ and let point $F$ be the intersection of side $AC$ and the ray $BG.$ If $AB$ has length $28,$ $AC$ has length $14,$ and $CD$ has length $10,$ then the length of $CF$ can be written as $\tfrac{k-m\sqrt{p}}{n}$ where $k, m, n,$ and $p$ are positive integers, $k$ and $n$ are relatively prime, and $p$ is not divisible by the square of any
prime. Find $k - m + n + p.$
On triangle $ABC$ let $D$ be the point on $AB$ so that $CD$ is an altitude of the triangle, and $E$ be the point on $BC$ so that $AE$ bisects angle $BAC.$ Let $G$ be the intersection of $AE$ and $CD,$ and let point $F$ be the intersection of side $AC$ and the ray $BG.$ If $AB$ has length $28,$ $AC$ has length $14,$ and $CD$ has length $10,$ then the length of $CF$ can be written as $\tfrac{k-m\sqrt{p}}{n}$ where $k, m, n,$ and $p$ are positive integers, $k$ and $n$ are relatively prime, and $p$ is not divisible by the square of any
prime. Find $k - m + n + p.$
2009 Purple Comet HS p21
A cylinder radius $12$ and a cylinder radius $36$ are held tangent to each other with a tight band. The length of the band is $m\sqrt{k}+n\pi$ where $m$, $k$, and $n$ are positive integers, and $k$ is not divisible by the square of any prime. Find $m + k + n$.
A cylinder radius $12$ and a cylinder radius $36$ are held tangent to each other with a tight band. The length of the band is $m\sqrt{k}+n\pi$ where $m$, $k$, and $n$ are positive integers, and $k$ is not divisible by the square of any prime. Find $m + k + n$.
2009 Purple Comet HS p22
The diagram shows a parabola, a line perpendicular to the parabola's axis of symmetry, and three similar isosceles triangles each with a base on the line and vertex on the parabola. The two smaller triangles are congruent and each have one base vertex on the parabola and one base vertex shared with the larger triangle. The ratio of the height of the larger triangle to the height of the smaller triangles is $\tfrac{a+\sqrt{b}}{c}$ where $a$, $b$, and $c$ are positive integers, and $a$ and $c$ are relatively prime. Find $a + b + c$.
2009 Purple Comet HS p24
A right circular cone pointing downward forms an angle of $60^\circ$ at its vertex. Sphere $S$ with radius $1$ is set into the cone so that it is tangent to the side of the cone. Three congruent spheres are placed in the cone on top of S so that they are all tangent to each other, to sphere $S$, and to the side of the cone. The radius of these congruent spheres can be written as $\tfrac{a+\sqrt{b}}{c}$ where $a$, $b$, and $c$ are positive integers such that $a$ and $c$ are relatively prime. Find $a + b + c$.
The diagram shows a parabola, a line perpendicular to the parabola's axis of symmetry, and three similar isosceles triangles each with a base on the line and vertex on the parabola. The two smaller triangles are congruent and each have one base vertex on the parabola and one base vertex shared with the larger triangle. The ratio of the height of the larger triangle to the height of the smaller triangles is $\tfrac{a+\sqrt{b}}{c}$ where $a$, $b$, and $c$ are positive integers, and $a$ and $c$ are relatively prime. Find $a + b + c$.
A right circular cone pointing downward forms an angle of $60^\circ$ at its vertex. Sphere $S$ with radius $1$ is set into the cone so that it is tangent to the side of the cone. Three congruent spheres are placed in the cone on top of S so that they are all tangent to each other, to sphere $S$, and to the side of the cone. The radius of these congruent spheres can be written as $\tfrac{a+\sqrt{b}}{c}$ where $a$, $b$, and $c$ are positive integers such that $a$ and $c$ are relatively prime. Find $a + b + c$.
2010 Purple Comet HS p3
The grid below contains six rows with six points in each row. Points that are adjacent either horizontally or vertically are a distance two apart. Find the area of the irregularly shaped ten sided figure shown.
2010 Purple Comet HS p8
The diagram below shows some small squares each with area $3$ enclosed inside a larger square. Squares that touch each other do so with the corner of one square coinciding with the midpoint of a side of the other square. Find integer $n$ such that the area of the shaded region inside the larger square but outside the smaller squares is $\sqrt{n}$.
2010 Purple Comet HS p16
The triangle $ABC$ has sides lengths $AB = 39$, $BC = 57$, and $CA = 70$ as shown. Median $\overline{AD}$ is divided into three congruent segments by points $E$ and $F$. Lines $BE$ and $BF$ intersect side $\overline{AC}$ at points $G$ and $H$, respectively. Find the distance from $G$ to $H$.
2010 Purple Comet HS p19
The grid below contains six rows with six points in each row. Points that are adjacent either horizontally or vertically are a distance two apart. Find the area of the irregularly shaped ten sided figure shown.
The diagram below shows some small squares each with area $3$ enclosed inside a larger square. Squares that touch each other do so with the corner of one square coinciding with the midpoint of a side of the other square. Find integer $n$ such that the area of the shaded region inside the larger square but outside the smaller squares is $\sqrt{n}$.
The triangle $ABC$ has sides lengths $AB = 39$, $BC = 57$, and $CA = 70$ as shown. Median $\overline{AD}$ is divided into three congruent segments by points $E$ and $F$. Lines $BE$ and $BF$ intersect side $\overline{AC}$ at points $G$ and $H$, respectively. Find the distance from $G$ to $H$.
The centers of the three circles A, B, and C are collinear with the center of circle B lying between the centers of circles A and C. Circles A and C are both externally tangent to circle B, and the three circles share a common tangent line. Given that circle A has radius $12$ and circle B has radius $42,$ find the radius of circle C.
2010 Purple Comet HS p23
A disk with radius $10$ and a disk with radius $8$ are drawn so that the distance between their centers is $3$. Two congruent small circles lie in the intersection of the two disks so that they are tangent to each other and to each of the larger circles as shown. The radii of the smaller circles are both $\tfrac{m}{n}$ where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
A disk with radius $10$ and a disk with radius $8$ are drawn so that the distance between their centers is $3$. Two congruent small circles lie in the intersection of the two disks so that they are tangent to each other and to each of the larger circles as shown. The radii of the smaller circles are both $\tfrac{m}{n}$ where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
2010 Purple Comet HS p29
Square $ABCD$ is shown in the diagram below. Points $E$, $F$, and $G$ are on sides $\overline{AB}$, $\overline{BC}$ and $\overline{DA}$, respectively, so that lengths $\overline{BE}$, $\overline{BF}$, and $\overline{DG}$ are equal. Points $H$ and $I$ are the midpoints of segments $\overline{EF}$ and $\overline{CG}$, respectively. Segment $\overline{GJ}$ is the perpendicular bisector of segment $\overline{HI}$. The ratio of the areas of pentagon $AEHJG$ and quadrilateral $CIHF$ can be written as $\dfrac{m}{n}$ where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
Square $ABCD$ is shown in the diagram below. Points $E$, $F$, and $G$ are on sides $\overline{AB}$, $\overline{BC}$ and $\overline{DA}$, respectively, so that lengths $\overline{BE}$, $\overline{BF}$, and $\overline{DG}$ are equal. Points $H$ and $I$ are the midpoints of segments $\overline{EF}$ and $\overline{CG}$, respectively. Segment $\overline{GJ}$ is the perpendicular bisector of segment $\overline{HI}$. The ratio of the areas of pentagon $AEHJG$ and quadrilateral $CIHF$ can be written as $\dfrac{m}{n}$ where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
2011 Purple Comet HS p2
The target below is made up of concentric circles with diameters $4$, $8$, $12$, $16$, and $20$. The area of the dark region is $n\pi$. Find $n$.
2011 Purple Comet HS p4
Five non-overlapping equilateral triangles meet at a common vertex so that the angles between adjacent triangles are all congruent. What is the degree measure of the angle between two adjacent triangles?
2011 Purple Comet HS p10
The target below is made up of concentric circles with diameters $4$, $8$, $12$, $16$, and $20$. The area of the dark region is $n\pi$. Find $n$.
2011 Purple Comet HS p4
Five non-overlapping equilateral triangles meet at a common vertex so that the angles between adjacent triangles are all congruent. What is the degree measure of the angle between two adjacent triangles?
The diagram shows a large circular dart board with four smaller shaded circles each internally tangent to the larger circle. Two of the internal circles have half the radius of the large circle, and are, therefore, tangent to each other. The other two smaller circles are tangent to these circles. If a dart is thrown so that it sticks to a point randomly chosen on the dart board, then the probability that the dart sticks to a point in the shaded area is $\dfrac{m}{n}$ where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
2011 Purple Comet HS p14
The lengths of the three sides of a right triangle form a geometric sequence. The sine of the smallest of the angles in the triangle is $\tfrac{m+\sqrt{n}}{k}$ where $m$, $n$, and $k$ are integers, and $k$ is not divisible by the square of any prime. Find $m + n + k$.
The lengths of the three sides of a right triangle form a geometric sequence. The sine of the smallest of the angles in the triangle is $\tfrac{m+\sqrt{n}}{k}$ where $m$, $n$, and $k$ are integers, and $k$ is not divisible by the square of any prime. Find $m + n + k$.
2011 Purple Comet HS p15
A pyramid has a base which is an equilateral triangle with side length $300$ centimeters. The vertex of the pyramid is $100$ centimeters above the center of the triangular base. A mouse starts at a corner of the base of the pyramid and walks up the edge of the pyramid toward the vertex at the top. When the mouse has walked a distance of $134$ centimeters, how many centimeters above the base of the pyramid is the mouse?
A pyramid has a base which is an equilateral triangle with side length $300$ centimeters. The vertex of the pyramid is $100$ centimeters above the center of the triangular base. A mouse starts at a corner of the base of the pyramid and walks up the edge of the pyramid toward the vertex at the top. When the mouse has walked a distance of $134$ centimeters, how many centimeters above the base of the pyramid is the mouse?
2011 Purple Comet HS p20
Points $A$ and $B$ are the endpoints of a diameter of a circle with center $C$. Points $D$ and $E$ lie on the same diameter so that $C$ bisects segment $\overline{DE}$. Let $F$ be a randomly chosen point within the circle. The probability that $\triangle DEF$ has a perimeter less than the length of the diameter of the circle is $\tfrac{17}{128}$. There are relatively prime positive integers m and n so that the ratio of $DE$ to $AB$ is $\tfrac{m}{n}.$ Find $m + n$.
Points $A$ and $B$ are the endpoints of a diameter of a circle with center $C$. Points $D$ and $E$ lie on the same diameter so that $C$ bisects segment $\overline{DE}$. Let $F$ be a randomly chosen point within the circle. The probability that $\triangle DEF$ has a perimeter less than the length of the diameter of the circle is $\tfrac{17}{128}$. There are relatively prime positive integers m and n so that the ratio of $DE$ to $AB$ is $\tfrac{m}{n}.$ Find $m + n$.
2011 Purple Comet HS p22
Five congruent circles have centers at the vertices of a regular pentagon so that each of the circles is tangent to its two neighbors. A sixth circle (shaded in the diagram below) congruent to the other five is placed tangent to two of the five. If this sixth circle is allowed to roll without slipping around the exterior of the figure formed by the other five circles, then it will turn through an angle of $k$ degrees before it returns to its starting position. Find $k$.
Five congruent circles have centers at the vertices of a regular pentagon so that each of the circles is tangent to its two neighbors. A sixth circle (shaded in the diagram below) congruent to the other five is placed tangent to two of the five. If this sixth circle is allowed to roll without slipping around the exterior of the figure formed by the other five circles, then it will turn through an angle of $k$ degrees before it returns to its starting position. Find $k$.
2011 Purple Comet HS p24
The diagram below shows a regular hexagon with an inscribed square where two sides of the square are parallel to two sides of the hexagon. There are positive integers $m$, $n$, and $p$ such that the ratio of the area of the hexagon to the area of the square can be written as $\tfrac{m+\sqrt{n}}{p}$ where $m$ and $p$ are relatively prime. Find $m + n + p$.
2011 Purple Comet HS p28
The diagram below shows a regular hexagon with an inscribed square where two sides of the square are parallel to two sides of the hexagon. There are positive integers $m$, $n$, and $p$ such that the ratio of the area of the hexagon to the area of the square can be written as $\tfrac{m+\sqrt{n}}{p}$ where $m$ and $p$ are relatively prime. Find $m + n + p$.
Pictured below is part of a large circle with radius $30$. There is a chain of three circles with radius $3$, each internally tangent to the large circle and each tangent to its neighbors in the chain. There are two circles with radius $2$ each tangent to two of the radius $3$ circles. The distance between the centers of the two circles with radius $2$ can be written as $\textstyle\frac{a\sqrt b-c}d$, where $a,b,c,$ and $d$ are positive integers, $c$ and $d$ are relatively prime, and $b$ is not divisible by the square of any prime. Find $a+b+c+d$.
2011 Purple Comet HS p30
Four congruent spheres are stacked so that each is tangent to the other three. A larger sphere, $R$, contains the four congruent spheres so that all four are internally tangent to $R$. A smaller sphere, $S$, sits in the space between the four congruent spheres so that all four are externally tangent to $S$. The ratio of the surface area of $R$ to the surface area of $S$ can be written $m+\sqrt{n}$ where $m$ and $n$ are positive integers. Find $m + n$.
Four congruent spheres are stacked so that each is tangent to the other three. A larger sphere, $R$, contains the four congruent spheres so that all four are internally tangent to $R$. A smaller sphere, $S$, sits in the space between the four congruent spheres so that all four are externally tangent to $S$. The ratio of the surface area of $R$ to the surface area of $S$ can be written $m+\sqrt{n}$ where $m$ and $n$ are positive integers. Find $m + n$.
2012 Purple Comet HS p3
The diagram below shows a large square divided into nine congruent smaller squares. There are circles inscribed in five of the smaller squares. The total area covered by all the five circles is $20\pi$. Find the area of the large square.
2012 Purple Comet HS p4
The following diagram shows an equilateral triangle and two squares that share common edges. The area of each square is $75$. Find the distance from point $A$ to point $B$.
The following diagram shows an equilateral triangle and two squares that share common edges. The area of each square is $75$. Find the distance from point $A$ to point $B$.
2012 Purple Comet HS p7
Two convex polygons have a total of 33 sides and 243 diagonals. Find the number of diagonals in the polygon with the greater number of sides.
2012 Purple Comet HS p20
Square $ABCD$ has side length $68$. Let $E$ be the midpoint of segment $\overline{CD}$, and let $F$ be the point on segment $\overline{AB}$ a distance $17$ from point $A$. Point $G$ is on segment $\overline{EF}$ so that $\overline{EF}$ is perpendicular to segment $\overline{GD}$. The length of segment $\overline{BG}$ can be written as $m\sqrt{n}$ where $m$ and $n$ are positive integers, and $n$ is not divisible by the square of any prime. Find $m+n$.
2012 Purple Comet HS p22
The diagram below shows circles radius $1$ and $2$ externally tangent to each other and internally tangent to a circle radius $3$. There are relatively prime positive integers $m$ and $n$ so that a circle radius $\frac{m}{n}$ is internally tangent to the circle radius $3$ and externally tangent to the other two circles as shown. Find $m+n$.
The diagram below shows circles radius $1$ and $2$ externally tangent to each other and internally tangent to a circle radius $3$. There are relatively prime positive integers $m$ and $n$ so that a circle radius $\frac{m}{n}$ is internally tangent to the circle radius $3$ and externally tangent to the other two circles as shown. Find $m+n$.
A paper cup has a base that is a circle with radius $r$, a top that is a circle with radius $2r$, and sides that connect the two circles with straight line segments as shown below. This cup has height $h$ and volume $V$. A second cup that is exactly the same shape as the first is held upright inside the first cup so that its base is a distance of $\tfrac{h}2$ from the base of the first cup. The volume of liquid that will t inside the first cup and outside the second cup can be written $\tfrac{m}{n}\cdot V$ where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
2012 Purple Comet HS p30
The diagram below shows four regular hexagons each with side length $1$ meter attached to the sides of a square. This figure is drawn onto a thin sheet of metal and cut out. The hexagons are then bent upward along the sides of the square so that $A_1$ meets $A_2$, $B_1$ meets $B_2$, $C_1$ meets $C_2$, and $D_1$ meets $D_2$. If the resulting dish is filled with water, the water will rise to the height of the corner where the $A_1$ and $A_2$ meet. there are relatively prime positive integers $m$ and $n$ so that the number of cubic meters of water the dish will hold is $\sqrt{\frac{m}{n}}$. Find $m+n$.
The diagram below shows four regular hexagons each with side length $1$ meter attached to the sides of a square. This figure is drawn onto a thin sheet of metal and cut out. The hexagons are then bent upward along the sides of the square so that $A_1$ meets $A_2$, $B_1$ meets $B_2$, $C_1$ meets $C_2$, and $D_1$ meets $D_2$. If the resulting dish is filled with water, the water will rise to the height of the corner where the $A_1$ and $A_2$ meet. there are relatively prime positive integers $m$ and $n$ so that the number of cubic meters of water the dish will hold is $\sqrt{\frac{m}{n}}$. Find $m+n$.
2013 Purple Comet HS p2
The following diagram shows an eight-sided polygon $ABCDEFGH$ with side lengths $8,15,8,8,8,6,8,$ and $29$ as shown. All of its angles are right angles. Turn this eight-sided polygon into a six-sided polygon by connecting $B$ to $D$ with an edge and $E$ to $G$ with an edge to form polygon $ABDEGH$. Find the perimeter of $ABDEGH$.
The following diagram shows an eight-sided polygon $ABCDEFGH$ with side lengths $8,15,8,8,8,6,8,$ and $29$ as shown. All of its angles are right angles. Turn this eight-sided polygon into a six-sided polygon by connecting $B$ to $D$ with an edge and $E$ to $G$ with an edge to form polygon $ABDEGH$. Find the perimeter of $ABDEGH$.
2013 Purple Comet HS p16
The figure below shows a $90 \times90$ square with each side divided into three equal segments. Some of the endpoints of these segments are connected by straight lines. Find the area of the shaded region.
The figure below shows a $90 \times90$ square with each side divided into three equal segments. Some of the endpoints of these segments are connected by straight lines. Find the area of the shaded region.
2013 Purple Comet HS p18
Two concentric circles have radii $1$ and $4$. Six congruent circles form a ring where each of the six circles is tangent to the two circles adjacent to it as shown. The three lightly shaded circles are internally tangent to the circle with radius $4$ while the three darkly shaded circles are externally tangent to the circle with radius $1$. The radius of the six congruent circles can be written $\textstyle\frac{k+\sqrt m}n$, where $k,m,$ and $n$ are integers with $k$ and $n$ relatively prime. Find $k+m+n$.
Two concentric circles have radii $1$ and $4$. Six congruent circles form a ring where each of the six circles is tangent to the two circles adjacent to it as shown. The three lightly shaded circles are internally tangent to the circle with radius $4$ while the three darkly shaded circles are externally tangent to the circle with radius $1$. The radius of the six congruent circles can be written $\textstyle\frac{k+\sqrt m}n$, where $k,m,$ and $n$ are integers with $k$ and $n$ relatively prime. Find $k+m+n$.
2013 Purple Comet HS p23
The diagram below shows the regular hexagon $BCEGHJ$ surrounded by the rectangle $ADFI$. Let $\theta$ be the measure of the acute angle between the side $\overline{EG}$ of the hexagon and the diagonal of the rectangle $\overline{AF}$. There are relatively prime positive integers $m$ and $n$ so that $\sin^2\theta = \tfrac{m}{n}$. Find $m + n$.
The diagram below shows the regular hexagon $BCEGHJ$ surrounded by the rectangle $ADFI$. Let $\theta$ be the measure of the acute angle between the side $\overline{EG}$ of the hexagon and the diagonal of the rectangle $\overline{AF}$. There are relatively prime positive integers $m$ and $n$ so that $\sin^2\theta = \tfrac{m}{n}$. Find $m + n$.
2013 Purple Comet HS p28
Let $A$, $B$, $C$, $D$, $E$, $F$, $G$, $H$ be the eight vertices of a $30 \times30\times30$ cube as shown. The two figures $ACFH$ and $BDEG$ are congruent regular tetrahedra. Find the volume of the intersection of these two tetrahedra.
Let $A$, $B$, $C$, $D$, $E$, $F$, $G$, $H$ be the eight vertices of a $30 \times30\times30$ cube as shown. The two figures $ACFH$ and $BDEG$ are congruent regular tetrahedra. Find the volume of the intersection of these two tetrahedra.
2014 Purple Comet HS p1
The diagram below shows a circle with center $F$. The angles are related with $\angle BFC = 2\angle AFB$, $\angle CFD = 3\angle AFB$, $\angle DFE = 4\angle AFB$, and $\angle EFA = 5\angle AFB$. Find the degree measure of $\angle BFC$.
The diagram below shows a circle with center $F$. The angles are related with $\angle BFC = 2\angle AFB$, $\angle CFD = 3\angle AFB$, $\angle DFE = 4\angle AFB$, and $\angle EFA = 5\angle AFB$. Find the degree measure of $\angle BFC$.
2014 Purple Comet HS p3
The diagram below shows a rectangle with side lengths $36$ and $48$. Each of the sides is trisected and edges are added between the trisection points as shown. Then the shaded corner regions are removed, leaving the octagon which is not shaded in the diagram. Find the perimeter of this octagon.
The diagram below shows a rectangle with side lengths $36$ and $48$. Each of the sides is trisected and edges are added between the trisection points as shown. Then the shaded corner regions are removed, leaving the octagon which is not shaded in the diagram. Find the perimeter of this octagon.
2014 Purple Comet HS p5
The diagram below shows a large triangle with area $72$. Each side of the triangle has been trisected, and line segments have been drawn between these trisection points parallel to the sides of the triangle. Find the area of the shaded region.
The diagram below shows a large triangle with area $72$. Each side of the triangle has been trisected, and line segments have been drawn between these trisection points parallel to the sides of the triangle. Find the area of the shaded region.
2014 Purple Comet HS p8
In the diagram below $ABCDE$ is a regular pentagon, $\overline{AG}$ is perpendicular to $\overline{CD}$, and $\overline{BD}$ intersects $\overline{AG}$ at $F$. Find the degree measure of $\angle AFB$.
In the diagram below $ABCDE$ is a regular pentagon, $\overline{AG}$ is perpendicular to $\overline{CD}$, and $\overline{BD}$ intersects $\overline{AG}$ at $F$. Find the degree measure of $\angle AFB$.
2014 Purple Comet HS p12
The vertices of hexagon $ABCDEF$ lie on a circle. Sides $AB = CD = EF = 6$, and sides $BC = DE = F A = 10$. The area of the hexagon is $m\sqrt3$. Find $m$.
The vertices of hexagon $ABCDEF$ lie on a circle. Sides $AB = CD = EF = 6$, and sides $BC = DE = F A = 10$. The area of the hexagon is $m\sqrt3$. Find $m$.
2014 Purple Comet HS p17
In the figure below $\triangle ABC$, $\triangle DEF$, and $\triangle GHI$ are overlapping equilateral triangles, $C$ and $F$ lie on $\overline{BD}$, $F$ and $I$ lie on $\overline{EG}$, and $C$ and $I$ lie on $\overline{AH}$. Length $AB = 2FC$, $DE = 3FC$, and $GH = 4FC$. Given that the area of $\triangle FCI$ is $3$, find the area of the hexagon $ABGHDE$.
In the figure below $\triangle ABC$, $\triangle DEF$, and $\triangle GHI$ are overlapping equilateral triangles, $C$ and $F$ lie on $\overline{BD}$, $F$ and $I$ lie on $\overline{EG}$, and $C$ and $I$ lie on $\overline{AH}$. Length $AB = 2FC$, $DE = 3FC$, and $GH = 4FC$. Given that the area of $\triangle FCI$ is $3$, find the area of the hexagon $ABGHDE$.
2014 Purple Comet HS p20
Triangle $ABC$ has a right angle at $C$. Let $D$ be the midpoint of side $\overline{AC}$, and let $E$ be the intersection of $\overline{AC}$ and the bisector of $\angle ABC$. The area of $\triangle ABC$ is $144$, and the area of $\triangle DBE$ is $8$. Find $AB^2$.
Triangle $ABC$ has a right angle at $C$. Let $D$ be the midpoint of side $\overline{AC}$, and let $E$ be the intersection of $\overline{AC}$ and the bisector of $\angle ABC$. The area of $\triangle ABC$ is $144$, and the area of $\triangle DBE$ is $8$. Find $AB^2$.
2014 Purple Comet HS p25
The diagram below shows equilateral $\triangle ABC$ with side length $2$. Point $D$ lies on ray $\overrightarrow{BC}$ so that $CD = 4$. Points $E$ and $F$ lie on $\overline{AB}$ and $\overline{AC}$, respectively, so that $E$, $F$, and $D$ are collinear, and the area of $\triangle AEF$ is half of the area of $\triangle ABC$. Then $\tfrac{AE}{AF}=\tfrac m n$, where $m$ and $n$ are relatively prime positive integers. Find $m + 2n$.
The diagram below shows equilateral $\triangle ABC$ with side length $2$. Point $D$ lies on ray $\overrightarrow{BC}$ so that $CD = 4$. Points $E$ and $F$ lie on $\overline{AB}$ and $\overline{AC}$, respectively, so that $E$, $F$, and $D$ are collinear, and the area of $\triangle AEF$ is half of the area of $\triangle ABC$. Then $\tfrac{AE}{AF}=\tfrac m n$, where $m$ and $n$ are relatively prime positive integers. Find $m + 2n$.
2014 Purple Comet HS p26
Let $ABCD$ be a cyclic quadrilateral with $AB = 1$, $BC = 2$, $CD = 3$, $DA = 4$. Find the square of the area of quadrilateral $ABCD$.
Let $ABCD$ be a cyclic quadrilateral with $AB = 1$, $BC = 2$, $CD = 3$, $DA = 4$. Find the square of the area of quadrilateral $ABCD$.
2014 Purple Comet HS p30
Three mutually tangent spheres each with radius $5$ sit on a horizontal plane. A triangular pyramid has a base that is an equilateral triangle with side length $6$, has three congruent isosceles triangles for vertical faces, and has height $12$. The base of the pyramid is parallel to the plane, and the vertex of the pyramid is pointing downward so that it is between the base and the plane. Each of the three vertical faces of the pyramid is tangent to one of the spheres at a point on the triangular face along its altitude from the vertex of the pyramid to the side of length $6$. The distance that these points of tangency are from the base of the pyramid is $\tfrac mn$, where $m$ and $n$ are relatively prime positive integers. Find $m+n$.
2015 Purple Comet HS p5
Three mutually tangent spheres each with radius $5$ sit on a horizontal plane. A triangular pyramid has a base that is an equilateral triangle with side length $6$, has three congruent isosceles triangles for vertical faces, and has height $12$. The base of the pyramid is parallel to the plane, and the vertex of the pyramid is pointing downward so that it is between the base and the plane. Each of the three vertical faces of the pyramid is tangent to one of the spheres at a point on the triangular face along its altitude from the vertex of the pyramid to the side of length $6$. The distance that these points of tangency are from the base of the pyramid is $\tfrac mn$, where $m$ and $n$ are relatively prime positive integers. Find $m+n$.
The two diagonals of a quadrilateral have lengths $12$ and $9$, and the two diagonals are perpendicular to each other. Find the area of the quadrilateral.
2015 Purple Comet HS p8
In the figure below $\angle$LAM = $\angle$LBM = $\angle$LCM = $\angle$LDM, and $\angle$AEB = $\angle$BFC = $\angle$CGD = 34 degrees. Given that $\angle$KLM = $\angle$KML, find the degree measure of $\angle$ AEF.
In the figure below $\angle$LAM = $\angle$LBM = $\angle$LCM = $\angle$LDM, and $\angle$AEB = $\angle$BFC = $\angle$CGD = 34 degrees. Given that $\angle$KLM = $\angle$KML, find the degree measure of $\angle$ AEF.
2015 Purple Comet HS p13
The diagram below shows a parallelogram ABCD with $AB = 36$ and $AD = 60$. Diagonal BD is
perpendicular to side AB. Points E and F bisect sides AD and BC, respectively. Points G and H are the intersections of BD with AF and CE, respectively. Find the area of quadrilateral EGFH The diagram below shows a parallelogram ABCD with AB = 36 and AD = 60. Diagonal BD is
perpendicular to side AB. Points E and F bisect sides AD and BC, respectively. Points G and H are the intersections of BD with AF and CE, respectively. Find the area of quadrilateral EGFH.
The diagram below shows a parallelogram ABCD with $AB = 36$ and $AD = 60$. Diagonal BD is
perpendicular to side AB. Points E and F bisect sides AD and BC, respectively. Points G and H are the intersections of BD with AF and CE, respectively. Find the area of quadrilateral EGFH The diagram below shows a parallelogram ABCD with AB = 36 and AD = 60. Diagonal BD is
perpendicular to side AB. Points E and F bisect sides AD and BC, respectively. Points G and H are the intersections of BD with AF and CE, respectively. Find the area of quadrilateral EGFH.
2015 Purple Comet HS p15
On the inside of a square with side length 60, construct four congruent isosceles triangles each with base 60 and height 50, and each having one side coinciding with a different side of the square. Find the area of the octagonal region common to the interiors of all four triangles
On the inside of a square with side length 60, construct four congruent isosceles triangles each with base 60 and height 50, and each having one side coinciding with a different side of the square. Find the area of the octagonal region common to the interiors of all four triangles
2015 Purple Comet HS p19
The diagram below shows a 24×24 square ABCD. Points E and F lie on sides AD and CD, respectively, so that DE = DF = 8. Set X consists of the shaded triangle ABC with its interior, while set Y consists of the shaded triangle DEF with its interior. Set Z consists of all the points that are midpoints of segments connecting a point in set X with a point in set Y . That is, Z = {z | z is the midpoint of xy for x ∈ X and y ∈ Y}. Find the area of the set Z.
The diagram below shows a 24×24 square ABCD. Points E and F lie on sides AD and CD, respectively, so that DE = DF = 8. Set X consists of the shaded triangle ABC with its interior, while set Y consists of the shaded triangle DEF with its interior. Set Z consists of all the points that are midpoints of segments connecting a point in set X with a point in set Y . That is, Z = {z | z is the midpoint of xy for x ∈ X and y ∈ Y}. Find the area of the set Z.
A container is shaped like a right circular cone open at the top surmounted by a frustum which is open at the top and bottom as shown below. The lower cone has a base with radius 2 centimeters and height 6 centimeters while the frustum has bases with radii 2 and 8 centimeters and height 6 centimeters. If there is a rainfall measuring 2 centimeter of rain, the rain falling into the container will fill the container to a height of $m + 3\sqrt{n}$ cm, where m and n are positive integers. Find m + n.
2015 Purple Comet HS p29
Ten spherical balls are stacked in a pyramid. The bottom level of the stack has six balls each with radius 6 arranged in a triangular formation with adjacent balls tangent to each other. The middle level of the stack has three balls each with radius 5 arranged in a triangular formation each tangent to three balls in the bottom level. The top level of the stack has one ball with radius 6 tangent to the three balls in the middle level. The diagram shows the stack of ten balls with the balls in the middle shaded. The height of this stack of balls is m +$\sqrt{n}$, where m and n are positive integers. Find $m + n.$
Ten spherical balls are stacked in a pyramid. The bottom level of the stack has six balls each with radius 6 arranged in a triangular formation with adjacent balls tangent to each other. The middle level of the stack has three balls each with radius 5 arranged in a triangular formation each tangent to three balls in the bottom level. The top level of the stack has one ball with radius 6 tangent to the three balls in the middle level. The diagram shows the stack of ten balls with the balls in the middle shaded. The height of this stack of balls is m +$\sqrt{n}$, where m and n are positive integers. Find $m + n.$
2016 Purple Comet HS p2
2017 Purple Comet HS p26
The incircle of $\vartriangle ABC$ is tangent to sides $\overline{BC}, \overline{AC}$, and $\overline{AB}$ at $D, E$, and $F$, respectively. Point $G$ is the intersection of lines $AC$ and $DF$ as shown. The sides of $\vartriangle ABC$ have lengths $AB = 73, BC = 123$, and $AC = 120$. Find the length $EG$.
The trapezoid below has bases with lengths 7 and 17 and area 120. Find the difference of the areas of the two triangles.
2016 Purple Comet HS p4
One side of a rectangle has length 18. The area plus the perimeter of the rectangle is 2016. Find the perimeter of the rectangle.
One side of a rectangle has length 18. The area plus the perimeter of the rectangle is 2016. Find the perimeter of the rectangle.
2016 Purple Comet HS p6
he following diagram shows a square where each side has seven dots that divide the side into six equal segments. All the line segments that connect these dots that form a $45^{\circ}$ angle with a side of the square are drawn as shown. The area of the shaded region is 75. Find the area of the original square.
2016 Purple Comet HS p13
he following diagram shows a square where each side has seven dots that divide the side into six equal segments. All the line segments that connect these dots that form a $45^{\circ}$ angle with a side of the square are drawn as shown. The area of the shaded region is 75. Find the area of the original square.
In $\triangle$ABC shown below, AB = AC, AF = EF, and EH = CH = DH = GH = DG = BG. Also,
∠CHE = ∠F GH. Find the degree measure of ∠BAC.
∠CHE = ∠F GH. Find the degree measure of ∠BAC.
2016 Purple Comet HS p21
On equilateral $\triangle{ABC}$ point D lies on BC a distance 1 from B, point E lies on AC a distance 1 from C, and point F lies on AB a distance 1 from A. Segments AD, BE, and CF intersect in pairs at points G, H, and J which are the vertices of another equilateral triangle. The area of $\triangle{ABC}$ is twice the area of $\triangle{GHJ}$. The side length of $\triangle{ABC}$ can be written $\frac{r+\sqrt{s}}{t}$, where r, s, and t are relatively prime positive integers. Find $r + s + t$.
On equilateral $\triangle{ABC}$ point D lies on BC a distance 1 from B, point E lies on AC a distance 1 from C, and point F lies on AB a distance 1 from A. Segments AD, BE, and CF intersect in pairs at points G, H, and J which are the vertices of another equilateral triangle. The area of $\triangle{ABC}$ is twice the area of $\triangle{GHJ}$. The side length of $\triangle{ABC}$ can be written $\frac{r+\sqrt{s}}{t}$, where r, s, and t are relatively prime positive integers. Find $r + s + t$.
2016 Purple Comet HS p22
In $\triangle{ABC}$, $cos\angle{A} =\frac{2}{3}$, $cos\angle{B} =\frac{1}{9}$, and $BC = 24$. Find the length $AC$.
In $\triangle{ABC}$, $cos\angle{A} =\frac{2}{3}$, $cos\angle{B} =\frac{1}{9}$, and $BC = 24$. Find the length $AC$.
2016 Purple Comet HS p27
A container the shape of a pyramid has a 12 × 12 square base, and the other four edges each have length 11. The container is partially filled with liquid so that when one of its triangular faces is lying on a flat surface, the level of the liquid is half the distance from the surface to the top edge of the container. Find the volume of the liquid in the container.
A container the shape of a pyramid has a 12 × 12 square base, and the other four edges each have length 11. The container is partially filled with liquid so that when one of its triangular faces is lying on a flat surface, the level of the liquid is half the distance from the surface to the top edge of the container. Find the volume of the liquid in the container.
2016 Purple Comet HS p30
Some identically sized spheres are piled in $n$ layers in the shape of a square pyramid with one sphere in the top layer, 4 spheres in the second layer, 9 spheres in the third layer, and so forth so that the bottom layer has a square array of $n^2$ spheres. In each layer the centers of the spheres form a square grid so that each sphere is tangent to any sphere adjacent to it on the grid. Each sphere in an upper level is tangent to the four spheres directly below it. The diagram shows how the first three layers of spheres are stacked. A square pyramid is built around the pile of spheres so that the sides of the pyramid are tangent to the spheres on the outside of the pile. There is a positive integer $m$ such that as $n$ gets large, the ratio of the volume of the pyramid to the total volume inside all of the spheres approaches $\frac{\sqrt{m}}{\pi}$. Find $m$.
Some identically sized spheres are piled in $n$ layers in the shape of a square pyramid with one sphere in the top layer, 4 spheres in the second layer, 9 spheres in the third layer, and so forth so that the bottom layer has a square array of $n^2$ spheres. In each layer the centers of the spheres form a square grid so that each sphere is tangent to any sphere adjacent to it on the grid. Each sphere in an upper level is tangent to the four spheres directly below it. The diagram shows how the first three layers of spheres are stacked. A square pyramid is built around the pile of spheres so that the sides of the pyramid are tangent to the spheres on the outside of the pile. There is a positive integer $m$ such that as $n$ gets large, the ratio of the volume of the pyramid to the total volume inside all of the spheres approaches $\frac{\sqrt{m}}{\pi}$. Find $m$.
2017 Purple Comet HS p2
The gure below shows a large square divided into $9$ congruent smaller squares. A shaded square bounded by some of the diagonals of those smaller squares has area $14$. Find the area of the large square.
The gure below shows a large square divided into $9$ congruent smaller squares. A shaded square bounded by some of the diagonals of those smaller squares has area $14$. Find the area of the large square.
2017 Purple Comet HS p9
The diagram below shows $\vartriangle ABC$ with point $D$ on side $\overline{BC}$. Three lines parallel to side $\overline{BC}$ divide segment $\overline{AD}$ into four equal segments. In the triangle, the ratio of the area of the shaded region to the area of the unshaded region is $\frac{49}{33}$ and $\frac{BD}{CD} = \frac{m}{n}$ , where $m$ and $n$ are relatively prime positive integers. Find $m + n$
The diagram below shows $\vartriangle ABC$ with point $D$ on side $\overline{BC}$. Three lines parallel to side $\overline{BC}$ divide segment $\overline{AD}$ into four equal segments. In the triangle, the ratio of the area of the shaded region to the area of the unshaded region is $\frac{49}{33}$ and $\frac{BD}{CD} = \frac{m}{n}$ , where $m$ and $n$ are relatively prime positive integers. Find $m + n$
2017 Purple Comet HS p13
Let $ABCDE$ be a pentagon with area $2017$ such that four of its sides $AB, BC, CD$, and $EA$ have integer length. Suppose that $\angle A = \angle B = \angle C = 90^o$, $AB = BC$, and $CD = EA$. The maximum possible perimeter of $ABCDE$ is $a + b \sqrt{c}$, where $a$, $b$, and $c$ are integers and $c$ is not divisible by the square of any prime. Find $a + b + c$.
Let $ABCDE$ be a pentagon with area $2017$ such that four of its sides $AB, BC, CD$, and $EA$ have integer length. Suppose that $\angle A = \angle B = \angle C = 90^o$, $AB = BC$, and $CD = EA$. The maximum possible perimeter of $ABCDE$ is $a + b \sqrt{c}$, where $a$, $b$, and $c$ are integers and $c$ is not divisible by the square of any prime. Find $a + b + c$.
2017 Purple Comet HS p21
The diagram below shows a large circle. Six congruent medium-sized circles are each internally tangent to the large circle and tangent to two neighboring medium-sized circles. Three congruent small circles are mutually tangent to one another and are each tangent to two medium-sized circles as shown. The ratio of the area of the large circle to the area of one of the small circles can be written as $m+\sqrt{n}$, where $m$ and $n$ are positive integers. Find $m + n$.
The diagram below shows a large circle. Six congruent medium-sized circles are each internally tangent to the large circle and tangent to two neighboring medium-sized circles. Three congruent small circles are mutually tangent to one another and are each tangent to two medium-sized circles as shown. The ratio of the area of the large circle to the area of one of the small circles can be written as $m+\sqrt{n}$, where $m$ and $n$ are positive integers. Find $m + n$.
The incircle of $\vartriangle ABC$ is tangent to sides $\overline{BC}, \overline{AC}$, and $\overline{AB}$ at $D, E$, and $F$, respectively. Point $G$ is the intersection of lines $AC$ and $DF$ as shown. The sides of $\vartriangle ABC$ have lengths $AB = 73, BC = 123$, and $AC = 120$. Find the length $EG$.
2017 Purple Comet HS p30
A container is shaped like a right circular cone with base diameter $18$ and height $12$. The vertex of the container is pointing down, and the container is open at the top. Four spheres, each with radius $3$, are placed inside the container as shown. The fi rst sphere sits at the bottom and is tangent to the cone along a circle. The second, third, and fourth spheres are placed so they are each tangent to the cone and tangent to the rst sphere, and the second and fourth spheres are each tangent to the third sphere. The volume of the tetrahedron whose vertices are at the centers of the spheres is $K$. Find $K^2$.
A container is shaped like a right circular cone with base diameter $18$ and height $12$. The vertex of the container is pointing down, and the container is open at the top. Four spheres, each with radius $3$, are placed inside the container as shown. The fi rst sphere sits at the bottom and is tangent to the cone along a circle. The second, third, and fourth spheres are placed so they are each tangent to the cone and tangent to the rst sphere, and the second and fourth spheres are each tangent to the third sphere. The volume of the tetrahedron whose vertices are at the centers of the spheres is $K$. Find $K^2$.
2018 Purple Comet HS p2
A triangle with side lengths $16$, $18$, and $21$ has a circle with radius $6$ centered at each vertex. Find $n$ so that the total area inside the three circles but outside of the triangle is $n\pi$
A triangle with side lengths $16$, $18$, and $21$ has a circle with radius $6$ centered at each vertex. Find $n$ so that the total area inside the three circles but outside of the triangle is $n\pi$
2018 Purple Comet HS p6
Triangle $ABC$ has $AB = AC$. Point $D$ is on side $\overline{BC}$ so that $AD = CD$ and $\angle BAD = 36^o$. Find the degree measure of $\angle BAC$.
Triangle $ABC$ has $AB = AC$. Point $D$ is on side $\overline{BC}$ so that $AD = CD$ and $\angle BAD = 36^o$. Find the degree measure of $\angle BAC$.
2018 Purple Comet HS p9
trapezoid has side lengths $10, 10, 10$, and $22$. Each side of the trapezoid is the diameter of a semicircle with the two semicircles on the two parallel sides of the trapezoid facing outside the trapezoid and the other two semicircles facing inside the trapezoid as shown. The region bounded by these four semicircles has area $m + n\pi$, where m and n are positive integers. Find $m + n$.
trapezoid has side lengths $10, 10, 10$, and $22$. Each side of the trapezoid is the diameter of a semicircle with the two semicircles on the two parallel sides of the trapezoid facing outside the trapezoid and the other two semicircles facing inside the trapezoid as shown. The region bounded by these four semicircles has area $m + n\pi$, where m and n are positive integers. Find $m + n$.
2018 Purple Comet HS p13
Five lighthouses are located, in order, at points $A, B, C, D$, and $E$ along the shore of a circular lake with a diameter of $10$ miles. Segments $AD$ and $BE$ are diameters of the circle. At night, when sitting at $A$, the lights from $B, C, D$, and $E$ appear to be equally spaced along the horizon. The perimeter in miles of pentagon $ABCDE$ can be written $m +\sqrt{n}$, where $m$ and $n$ are positive integers. Find $m + n$.
Five lighthouses are located, in order, at points $A, B, C, D$, and $E$ along the shore of a circular lake with a diameter of $10$ miles. Segments $AD$ and $BE$ are diameters of the circle. At night, when sitting at $A$, the lights from $B, C, D$, and $E$ appear to be equally spaced along the horizon. The perimeter in miles of pentagon $ABCDE$ can be written $m +\sqrt{n}$, where $m$ and $n$ are positive integers. Find $m + n$.
2018 Purple Comet HS p28
In $\vartriangle ABC$ points $D, E$, and $F$ lie on side $\overline{BC}$ such that $\overline{AD}$ is an angle bisector of $\angle BAC$, $\overline{AE}$ is a median, and $\overline{AF}$ is an altitude. Given that $AB = 154$ and $AC = 128$, and $9 \times DE = EF,$ find the side length $BC$.
In $\vartriangle ABC$ points $D, E$, and $F$ lie on side $\overline{BC}$ such that $\overline{AD}$ is an angle bisector of $\angle BAC$, $\overline{AE}$ is a median, and $\overline{AF}$ is an altitude. Given that $AB = 154$ and $AC = 128$, and $9 \times DE = EF,$ find the side length $BC$.
2018 Purple Comet HS p30
One right pyramid has a base that is a regular hexagon with side length $1$, and the height of the pyramid is $8$. Two other right pyramids have bases that are regular hexagons with side length $4$, and the heights of those pyramids are both $7$. The three pyramids sit on a plane so that their bases are adjacent to each other and meet at a single common vertex. A sphere with radius $4$ rests above the plane supported by these three pyramids. The distance that the center of the sphere is from the plane can be written as $\frac{p\sqrt{q}}{r}$ , where $p, q$, and $r$ are relatively prime positive integers, and $q$ is not divisible by the square of any prime. Find $p+q+r$.
One right pyramid has a base that is a regular hexagon with side length $1$, and the height of the pyramid is $8$. Two other right pyramids have bases that are regular hexagons with side length $4$, and the heights of those pyramids are both $7$. The three pyramids sit on a plane so that their bases are adjacent to each other and meet at a single common vertex. A sphere with radius $4$ rests above the plane supported by these three pyramids. The distance that the center of the sphere is from the plane can be written as $\frac{p\sqrt{q}}{r}$ , where $p, q$, and $r$ are relatively prime positive integers, and $q$ is not divisible by the square of any prime. Find $p+q+r$.
2019 Purple Comet HS p2
The large square in the diagram below with sides of length $8$ is divided into $16$ congruent squares. Find the area of the shaded region.
The large square in the diagram below with sides of length $8$ is divided into $16$ congruent squares. Find the area of the shaded region.
2019 Purple Comet HS p4
The diagram below shows a sequence of equally spaced parallel lines with a triangle whose vertices lie on these lines. The segment $\overline{CD}$ is $6$ units longer than the segment $\overline{AB}$. Find the length of segment $\overline{EF}$.
The diagram below shows a sequence of equally spaced parallel lines with a triangle whose vertices lie on these lines. The segment $\overline{CD}$ is $6$ units longer than the segment $\overline{AB}$. Find the length of segment $\overline{EF}$.
2019 Purple Comet HS p6
A pentagon has four interior angles each equal to $110^o$. Find the degree measure of the fifth interior angle.
A pentagon has four interior angles each equal to $110^o$. Find the degree measure of the fifth interior angle.
2019 Purple Comet HS p8
The diagram below shows a $12$ by $20$ rectangle split into four strips of equal widths all surrounding an isosceles triangle. Find the area of the shaded region.
The diagram below shows a $12$ by $20$ rectangle split into four strips of equal widths all surrounding an isosceles triangle. Find the area of the shaded region.
2019 Purple Comet HS p12
The following diagram shows four adjacent $2\times 2$ squares labeled $1, 2, 3$, and $4$. A line passing through the lower left vertex of square $1$ divides the combined areas of squares $1, 3$, and $4$ in half so that the shaded region has area $6$. The difference between the areas of the shaded region within square $4$ and the shaded region within square $1$ is $\frac{p}{q}$ , where $p$ and $q$ are relatively prime positive integers. Find $p + q$.
The following diagram shows four adjacent $2\times 2$ squares labeled $1, 2, 3$, and $4$. A line passing through the lower left vertex of square $1$ divides the combined areas of squares $1, 3$, and $4$ in half so that the shaded region has area $6$. The difference between the areas of the shaded region within square $4$ and the shaded region within square $1$ is $\frac{p}{q}$ , where $p$ and $q$ are relatively prime positive integers. Find $p + q$.
2019 Purple Comet HS p14
The circle centered at point $A$ with radius $19$ and the circle centered at point $B$ with radius $32$ are both internally tangent to a circle centered at point $C$ with radius $100$ such that point $C$ lies on segment $\overline{AB}$. Point $M$ is on the circle centered at $A$ and point $N$ is on the circle centered at $B$ such that line $MN$ is a common internal tangent of those two circles. Find the distance $MN$.
2019 Purple Comet HS p17
The circle centered at point $A$ with radius $19$ and the circle centered at point $B$ with radius $32$ are both internally tangent to a circle centered at point $C$ with radius $100$ such that point $C$ lies on segment $\overline{AB}$. Point $M$ is on the circle centered at $A$ and point $N$ is on the circle centered at $B$ such that line $MN$ is a common internal tangent of those two circles. Find the distance $MN$.
The following diagram shows equilateral triangle $\vartriangle ABC$ and three other triangles congruent to it. The other three triangles are obtained by sliding copies of $\vartriangle ABC$ a distance $\frac18 AB$ along a side of $\vartriangle ABC$ in the directions from $A$ to $B$, from $B$ to $C$, and from $C$ to $A$. The shaded region inside all four of the triangles has area $300$. Find the area of $\vartriangle ABC$.
In the diagram below, points $D, E$, and $F$ are on the inside of equilateral $\vartriangle ABC$ such that $D$ is on $\overline{AE}, E$ is on $\overline{CF}, F$ is on $\overline{BD}$, and the triangles $\vartriangle AEC, \vartriangle BDA$, and $\vartriangle CFB$ are congruent. Given that $AB = 10$ and $DE = 6$, the perimeter of $\vartriangle BDA$ is $\frac{a+b\sqrt{c}}{d}$, where $a, b, c$, and $d$ are positive integers, $b$ and $d$ are relatively prime, and $c$ is not divisible by the square of any prime. Find $a + b + c + d$.
2019 Purple Comet HS p26
Let $D$ be a regular dodecahedron, which is a polyhedron with $20$ vertices, $30$ edges, and $12$ regular pentagon faces. A tetrahedron is a polyhedron with $4$ vertices, $6$ edges, and $4$ triangular faces. Find the number of tetrahedra with positive volume whose vertices are vertices of $D$.
2019 Purple Comet HS p29
In a right circular cone, $A$ is the vertex, $B$ is the center of the base, and $C$ is a point on the circumference of the base with $BC = 1$ and $AB = 4$. There is a trapezoid $ABCD$ with $\overline{AB} \parallel \overline{CD}$. A right circular cylinder whose surface contains the points $A, C$, and $D$ intersects the cone such that its axis of symmetry is perpendicular to the plane of the trapezoid, and $\overline{CD}$ is a diameter of the cylinder. A sphere radius $r$ lies inside the cone and inside the cylinder. The greatest possible value of $r$ is $\frac{a\sqrt{b}-c}{d}$ , where $a, b, c$, and $d$ are positive integers, $a$ and $d$ are relatively prime, and $b$ is not divisible by the square of any prime. Find $a + b + c + d$.
An ant starts at vertex $A$ in equilateral triangle $\vartriangle ABC$ and walks around the perimeter of the triangle from $A$ to $B$ to $C$ and back to $A$. When the ant is $42$ percent of its way around the triangle, it stops for a rest. Find the percent of the way from $B$ to $C$ the ant is at that point
Two congruent equilateral triangles $\vartriangle ABC$ and $\vartriangle DEF$ lie on the same side of line $BC$ so that $B, C, E$, and $F$ are collinear as shown. A line intersects $\overline{AB}, \overline{AC}, \overline{DE}$, and $\overline{EF}$ at $W, X, Y$ , and $Z$, respectively, such that $\frac{AW}{BW} = \frac29$ , $\frac{AX}{CX} = \frac56$ , and $\frac{DY}{EY} = \frac92$ . The ratio $\frac{EZ}{FZ}$ can then be written as $\frac{m}{n}$ , where $m$ and $n$ are relatively prime positive integers. Find $m + n$.
No comments:
Post a Comment
